# Monitor Machines

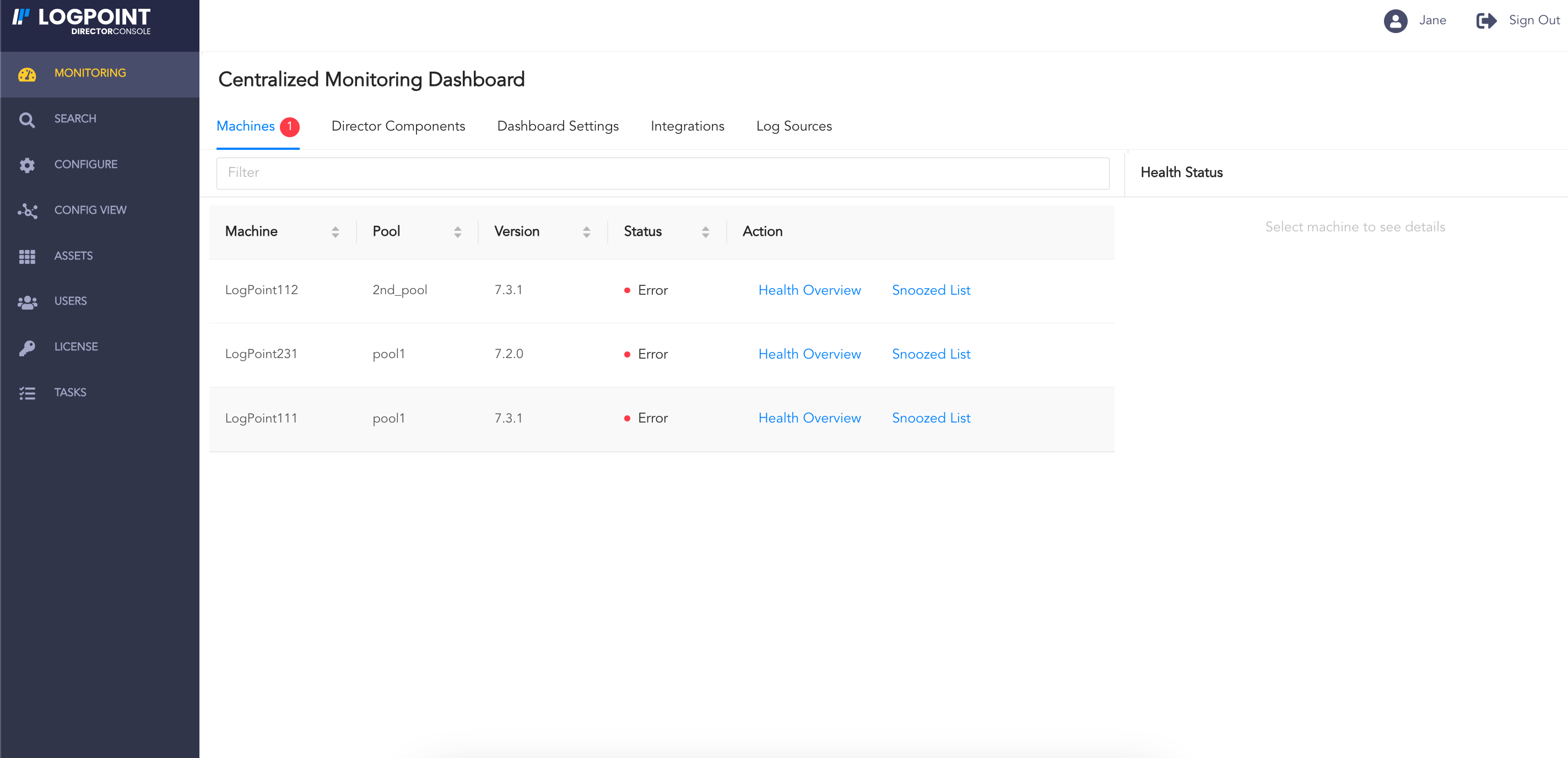

In **Machines**, you can view the health status of each individual Logpoint Machine connected to Director, along with:

**Machine** - the name of the Logpoint Machine.

**Pool** - the name of the pool to which the machine is connected.

**Version** - the machine’s version number.

**Status** - the health status of the machine. Green (<img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2FG10GqMDrpKBwT7WJXhVf%2Fimage.png?alt=media&#x26;token=6593d961-7493-4ec6-8dd9-6d055b6a6f25" alt="" data-size="line">) means healthy, Amber (<img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2FRmfsZpod2gRuaIv4r0Mx%2Fimage.png?alt=media&#x26;token=e4a793df-3752-4273-8f9a-c6e18e792e73" alt="" data-size="line">) is a warning and red (<img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2FMlJHUnudmj418PLTjHDM%2Fimage.png?alt=media&#x26;token=7f362b85-d630-4057-940e-dc345bad264b" alt="" data-size="line">) means there is an error.

**Action** - contains two hyperlinks: **Health Overview** and **Snoozed List** for that particular machine. See [Health Overview](#health-overview) for details. Click **Snoozed List** to view snoozed metrics and time. You can only view the snoozed list if metrics are selected for snooze. See [Snoozing the Metrics](#snoozing-the-metrics) for details.

<div align="left"><figure><img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2Fz8D936hF95ryInXJ8SAv%2Fimage.png?alt=media&#x26;token=5c2cccc6-fbeb-40c6-9c45-0de15165c7c6" alt="Health Monitoring" width="563"><figcaption><p>Health Monitoring</p></figcaption></figure></div>

### Health Status

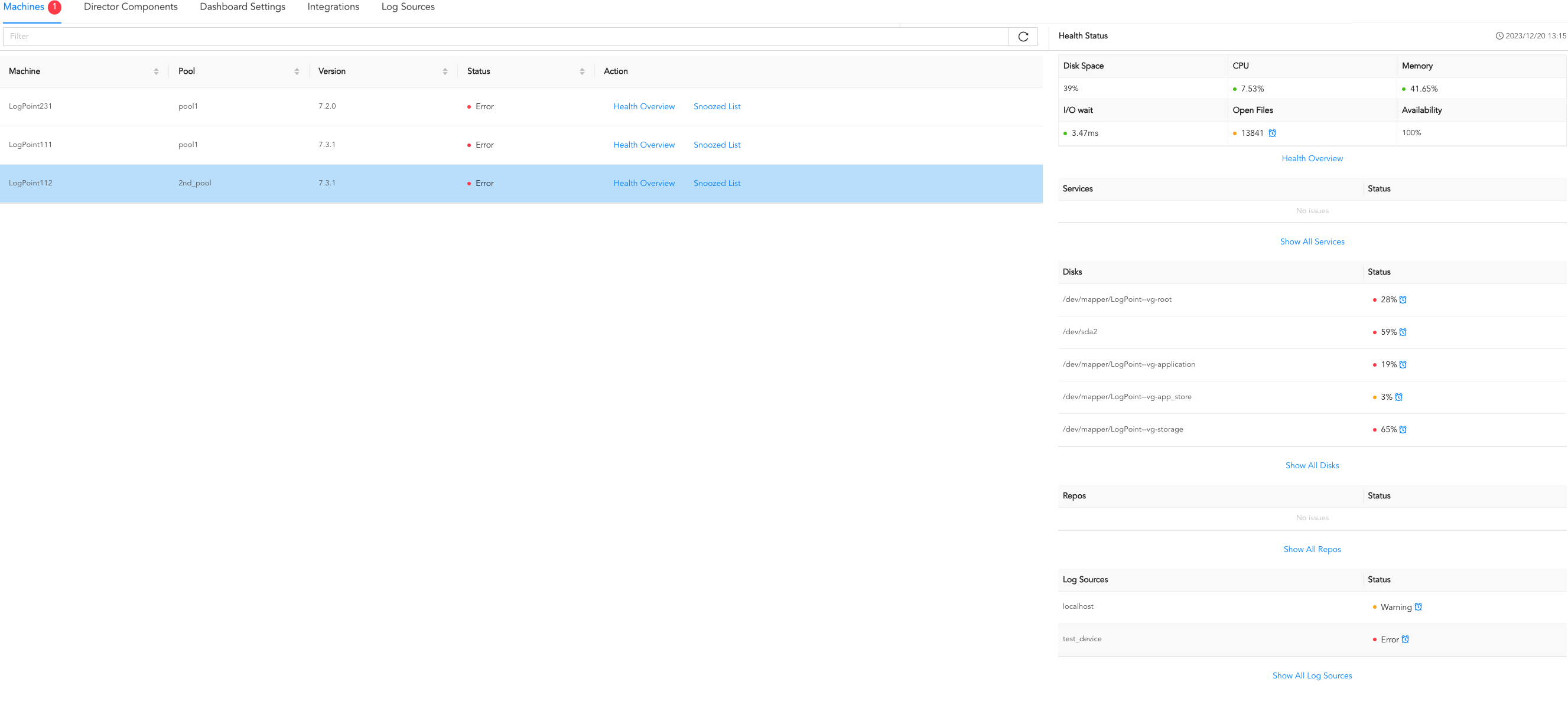

When you click on individual machine, the **Health Status** on the right side displays the relevant data. This gives the health summary of the selected machine. Select an individual machine in the list to view its health metrics, including Services, Disks, Repos and Log Sources.

<div align="left"><figure><img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2FX2IKcuN2xCQ36awb7Ysd%2Fimage.png?alt=media&#x26;token=a3c49fd7-21ef-4774-8130-3792c731c914" alt="" width="563"><figcaption><p>Health Summary</p></figcaption></figure></div>

### Snoozing the Metrics

You can snooze any health metrics, services, disks, repos or log sources, with Error or Warning status, for a certain period of time. Snoozing disables threshold rules, configured through [Dashboard Settings](https://docs.logpoint.com/director/director-console/monitor-entities/monitor-system-via-centralized-dashboard/monitor-dashboard-settings), so a machine’s status is healthy for a period of time. When the metric is snoozed, a (<img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2FjwHonmrvrvB0qbGLDFA5%2Fimage.png?alt=media&#x26;token=df1a901e-5b89-48a3-a0ab-54d7fe74b9d6" alt="" data-size="line">) icon appears beside the metric on the summary page and beside the Status of the machine, for the reminder that the status of machine is Healthy because one or more threshold rules are snoozed. To snooze any metric:

1. Go to `Health Monitoring >> Machines`.
2. Click on the machine whose status is Error or Warning. A health summary appears on the right.
3. Click on the clock icon next to the metric with red indicator (<img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2FxRJfohNdDRxvCqNfFgrB%2Fimage.png?alt=media&#x26;token=f3e2ccf4-73fd-4ad0-a485-ab461a38b6b4" alt="" data-size="line">) or amber (<img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2FX9YkpvqKi6a4epYKCskk%2Fimage.png?alt=media&#x26;token=dd3df56c-ef39-453b-9e62-bbd59c53ad97" alt="" data-size="line">).

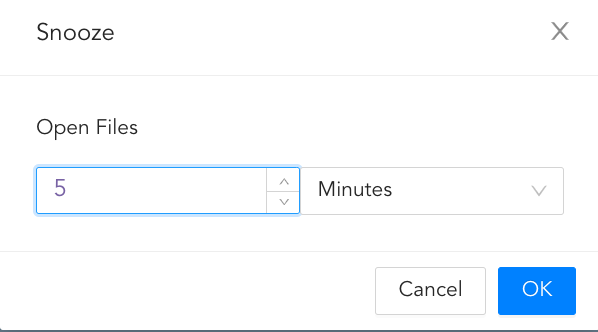

4. Enter numerical value for time and select Minutes/Hours/Days.

<div align="left"><figure><img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2FkrQFXTusT4zFl3rvgh4L%2Fimage.png?alt=media&#x26;token=acdaeba4-9cb1-4d99-bb6b-e8fc4e5af079" alt=""><figcaption><p>Snooze</p></figcaption></figure></div>

5. Click **OK**

### Snoozed List

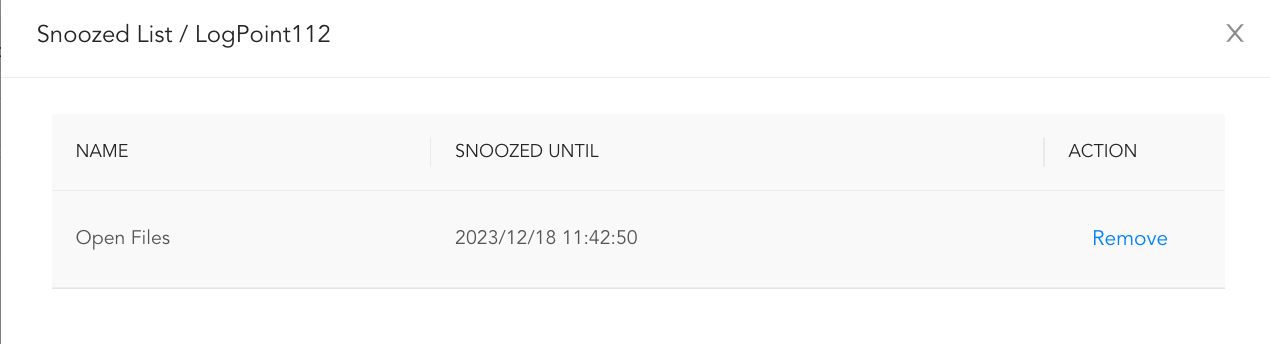

This gives the list of snoozed metrics along with their snoozed time. You can also remove the metrics from the snoozed list. You can unsnooze by clicking **Remove** under **ACTION**.<br>

<figure><img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2FkUmBw2LymVcSMfzgIgkW%2Fimage.png?alt=media&#x26;token=93c4f1f7-7d6c-4205-85f9-684523e10273" alt=""><figcaption><p>Snoozed List</p></figcaption></figure>

You can also unsnooze any metrics by clicking the (<img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2FlMAZruyJSge9GRU1aYCT%2Fimage.png?alt=media&#x26;token=dbcb5984-403b-4e58-b9f5-ef89b1232aa3" alt="" data-size="line">) icon.

### Health Overview

**Health Overview** provides detailed health metrics of an individual Logpoint machine. The metrics are displayed as graphs, making the health information easy to understand and monitor.

The metrics are:

<table data-header-hidden><thead><tr><th width="313.5555419921875"></th><th></th></tr></thead><tbody><tr><td><strong>Health Metric</strong></td><td><strong>Description</strong></td></tr><tr><td>Available Memory</td><td>The amount of RAM that is available for the system to use right away.</td></tr><tr><td>Free Memory</td><td>The amount of RAM that is not being used by the operating system or any applications at the moment.</td></tr><tr><td>Inactive Memory</td><td>The amount of RAM that has recently been accessed but is not currently being used is known as inactive memory.</td></tr><tr><td>I/O Wait</td><td>The time CPU waits for input/output operations to complete.</td></tr><tr><td>Idle Percent</td><td>The percentage of time the CPU is idle.</td></tr><tr><td>Average Load</td><td>A measure of system activity, indicating the average number of processes waiting for CPU time over a specific period.</td></tr><tr><td>Open Files</td><td>The number of files currently open or in use by the system.</td></tr><tr><td>Device Count</td><td>The total number of devices connected or recognized.</td></tr><tr><td>Top 5 CPU Usage</td><td>A list of the five processes consuming the most CPU resources.</td></tr><tr><td>Top 5 Memory Usage</td><td>A list of the five processes using the most memory resources.</td></tr></tbody></table>

Any health metric that exceeds their threshold, their status is marked Error with red (<img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2FmDaXnDSoiBx7ur10w9O2%2Fimage.png?alt=media&#x26;token=3818e23f-7b52-43a6-a026-75a6cd284ab4" alt="" data-size="line">), Warning with amber (<img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2Fq8XN8CTeY8svQCt5O7qh%2Fimage.png?alt=media&#x26;token=ff5b5e9c-15da-4486-b63a-f6acdabd4adb" alt="" data-size="line">) or Healthy with green (<img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2FFPm3lTRp5YMpPzYT6jqH%2Fimage.png?alt=media&#x26;token=c91f8cf6-5680-43fc-9694-b5243967e8ce" alt="" data-size="line">).

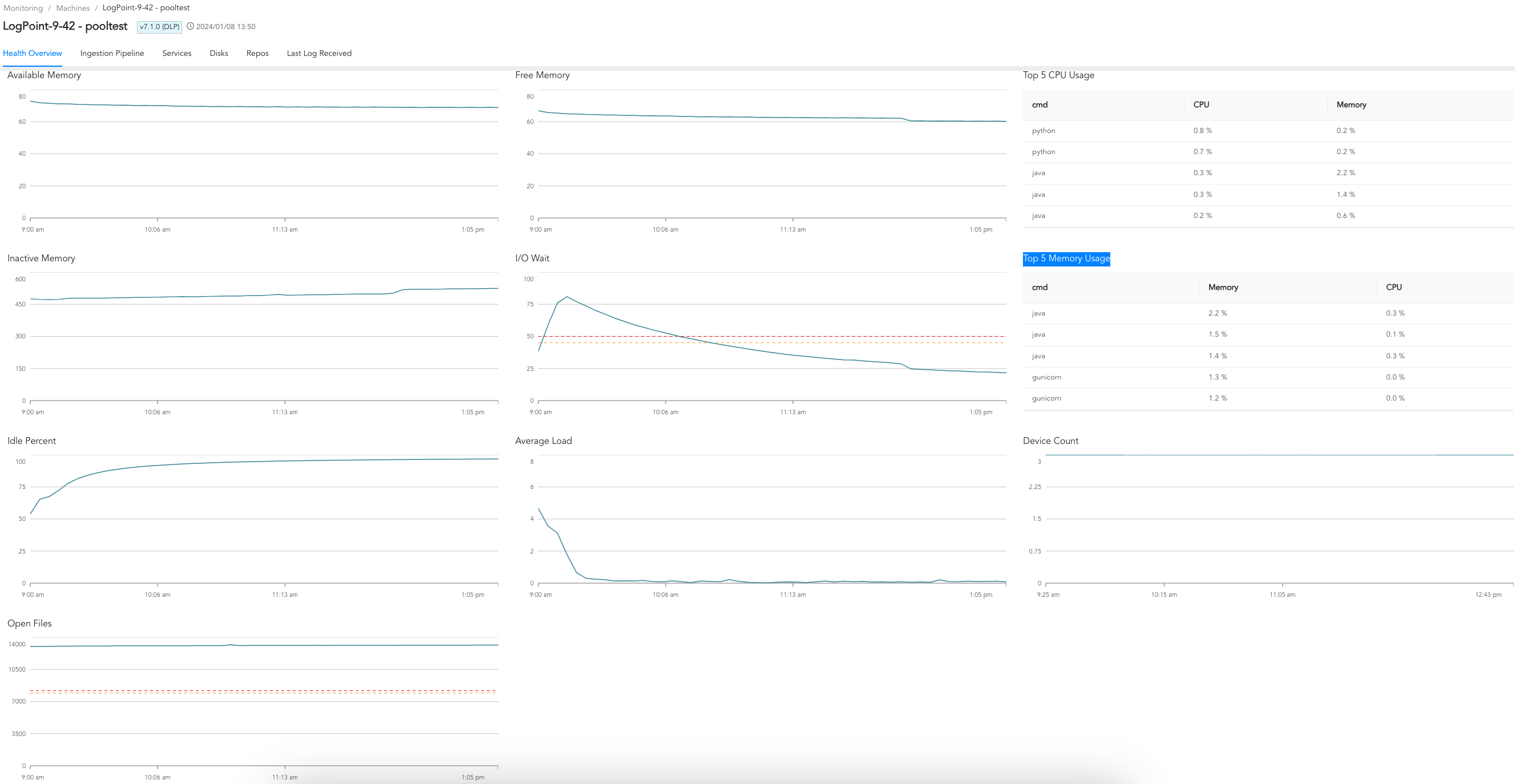

<div align="left"><figure><img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2F8vQpGzUi35WDrhxSRQJv%2Fimage.png?alt=media&#x26;token=ace0dd78-f672-44c1-b96c-8257a0c0d3e0" alt="" width="563"><figcaption><p>Health Overview</p></figcaption></figure></div>

{% hint style="success" %}
**Top 5 CPU usage** and **Top 5 memory usage** are only visible from Logpoint v.7.3.1 and later.
{% endhint %}

### Ingestion Pipeline

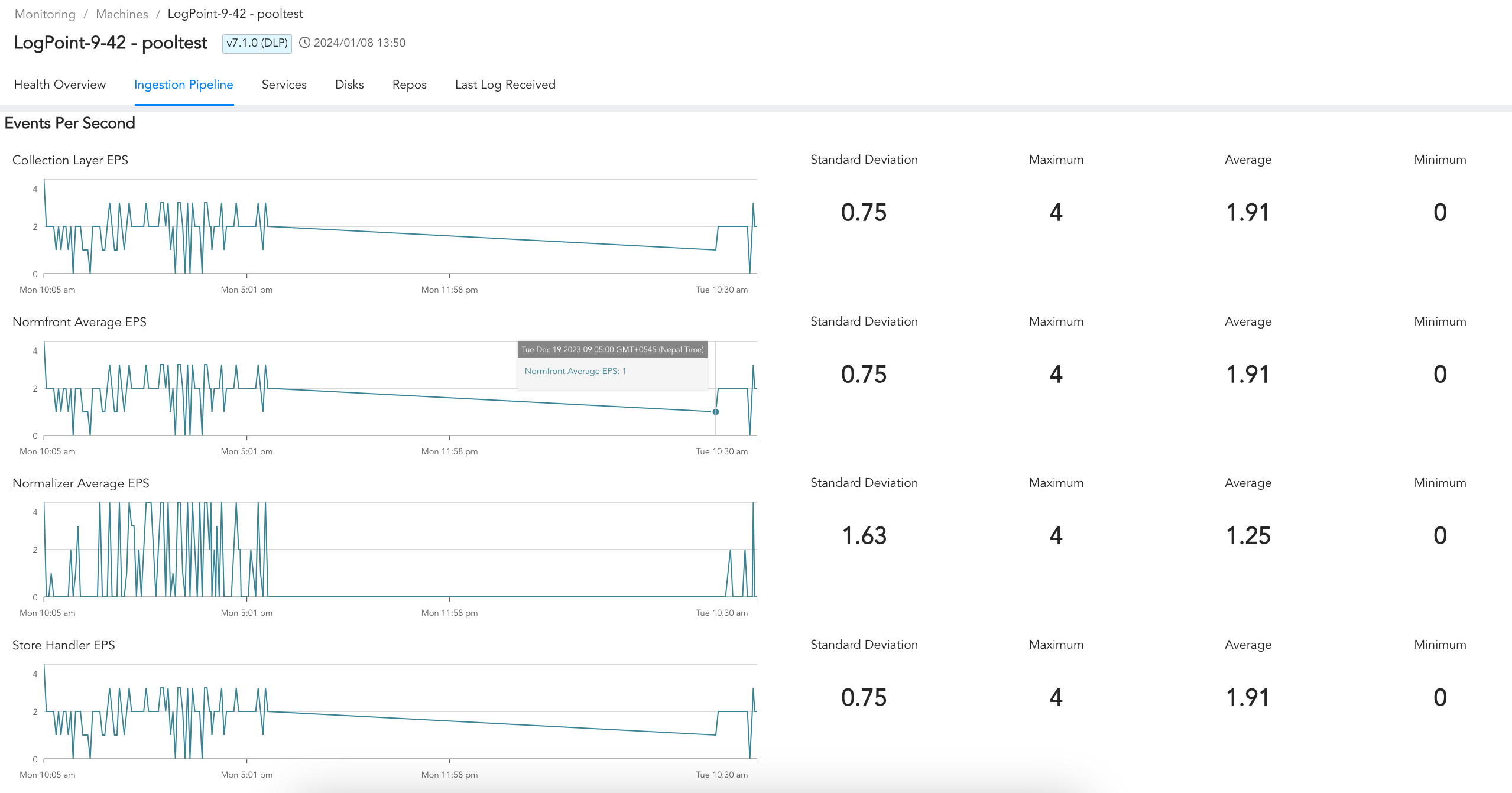

**Ingestion Pipeline** is the graphical representation of event processing data and a machine’s Queue Status. It gives a central view of log processing across various layers of Logpoint. This helps in detecting log congestion, latency or service outages. You can view various statistical data such as Standart Deviation, Average, Maximum and Minimum values.

<figure><img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2F46J6RTZ8y48a9l4aForE%2Fimage.png?alt=media&#x26;token=e58891a7-773b-42df-8aed-78a4f84eb10f" alt=""><figcaption><p>Ingestion Pipeline Events Per Second<br></p></figcaption></figure>

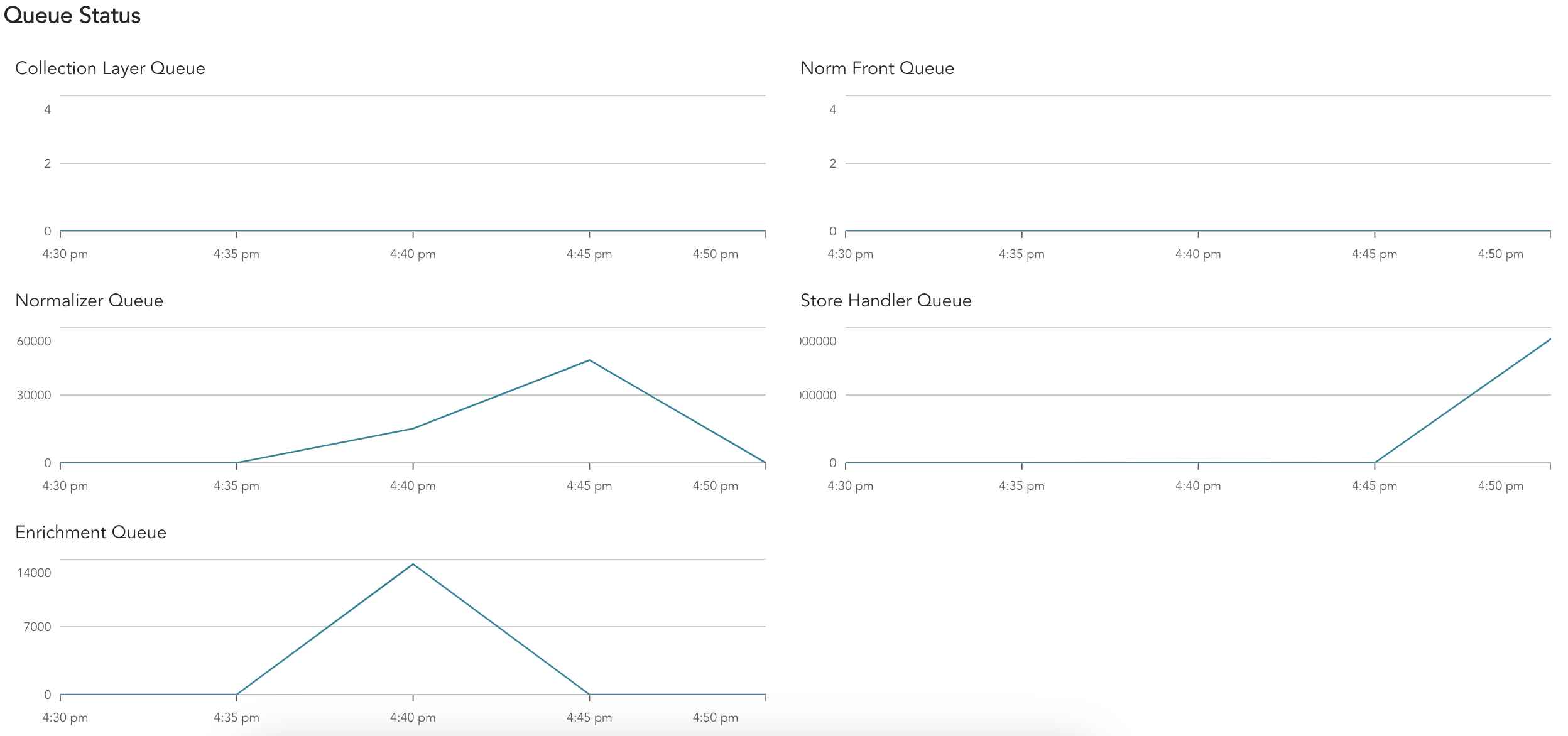

<figure><img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2FYKKurLq43W1MeshsISZC%2Fimage.png?alt=media&#x26;token=439300ea-979a-40d6-a2d3-f972195e2c4c" alt=""><figcaption><p>Ingestion Pipeline Queue Status</p></figcaption></figure>

{% hint style="success" %}
**Collector Fetcher EPS**, **Collector Fetcher Queue** and **Enrichment Queue** are visible from Logpoint v.7.3.1 and later.
{% endhint %}

### Services

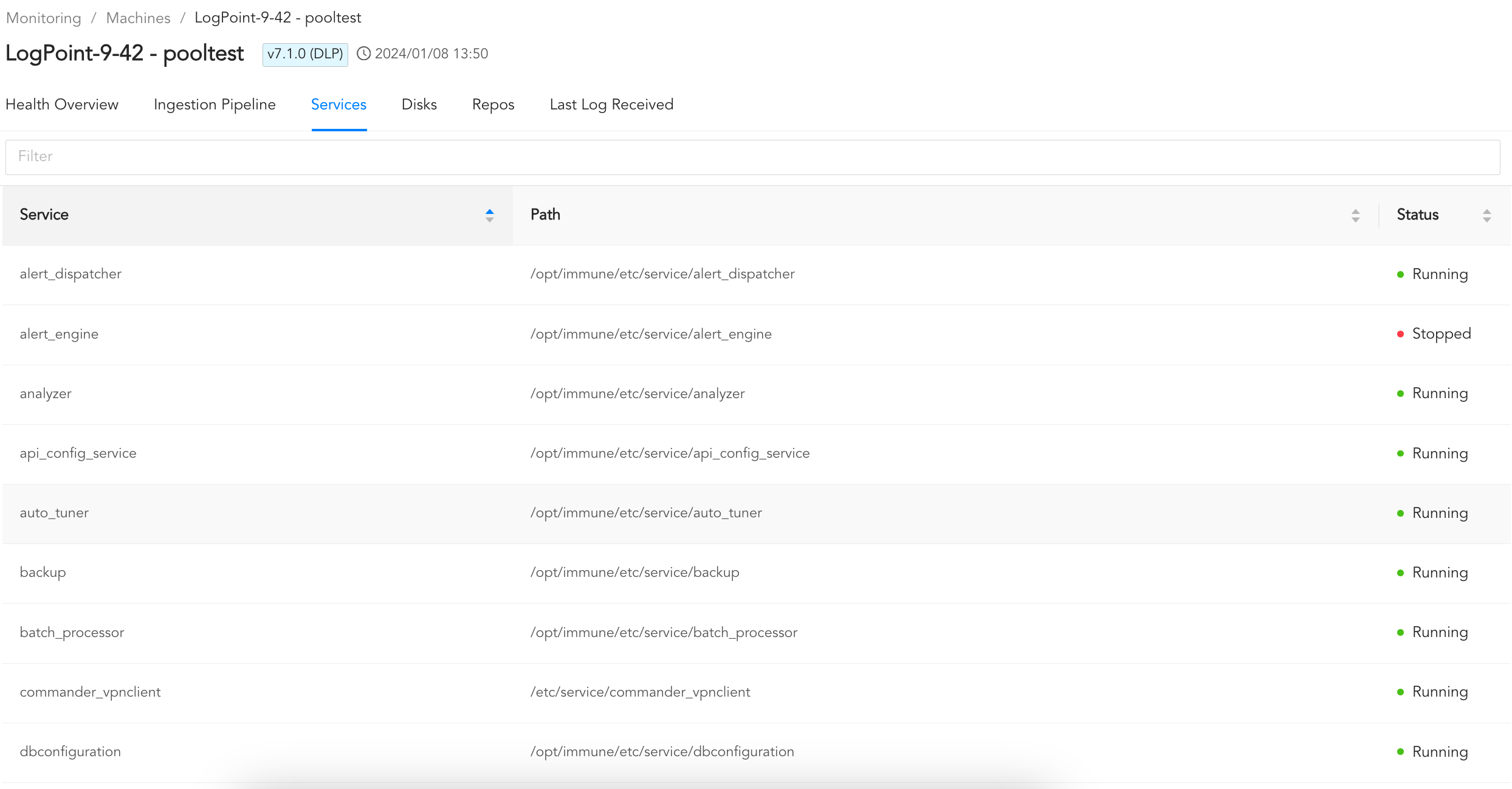

**Services** shows the status and the path for a machine’s services. You can use the column headings to sort the **Services** list. You can filter by entering the name of the service, path to the service and status of the service. Use a status indicator color red, amber or green to filter the list. Services with the red (<img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2FpON5kz9eKdMjYAjTpAn1%2Fimage.png?alt=media&#x26;token=afe4d16c-61bb-4166-b7e4-06d2f429063d" alt="" data-size="line">) **Stopped** mean there is an error with their machine.

<figure><img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2FVIOHWWxxniRW4gj1AILE%2Fimage.png?alt=media&#x26;token=1777a34c-04a0-4226-8d00-439921f53824" alt=""><figcaption><p>Services Monitoring</p></figcaption></figure>

{% hint style="success" %}
For Logpoints v7.3.0 and below, only the stopped services are shown.
{% endhint %}

## Disks

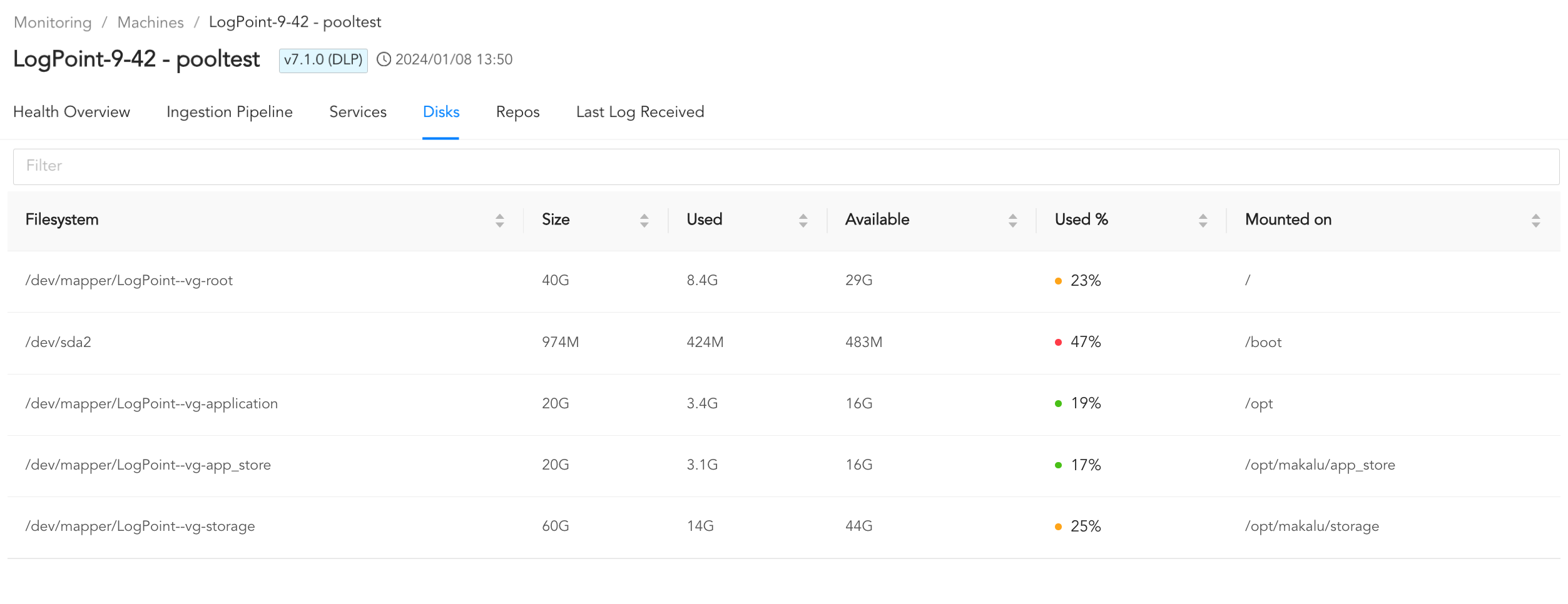

**Disks** displays information about a machine’s disks including file system, size, used memory, available memory, used percentage and mount points. Use the column headings to sort the list. Use a status indicator color red, amber or green to filter the list.

If the Used Percentage of the disk exceeds their threshold, their status is marked Error with red (<img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2FCBbzlsxKWpVEYoXOPrXA%2Fimage.png?alt=media&#x26;token=df4d7c6a-8c29-4cba-9861-97cfd559a5a7" alt="" data-size="line">), Warning with amber (<img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2FTKI2IrdBpWACwhxC6c6i%2Fimage.png?alt=media&#x26;token=aa392a41-82bf-4dc9-93fa-b68c33ad51fa" alt="" data-size="line">) or Healthy with green (<img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2FWfgZ4S9Ma2cbcTl2HRHE%2Fimage.png?alt=media&#x26;token=fe61d49c-3b43-4693-a6b2-93f1e8a1467a" alt="" data-size="line">).<br>

<figure><img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2FANU3mxPQZGgQP1Fq2zrm%2Fimage.png?alt=media&#x26;token=1b8781f1-be82-4d90-b5d8-6db0ea37c59b" alt="Disks Monitoring"><figcaption><p>Disks Monitoring</p></figcaption></figure>

## Repos

**Repos** lists a selected machine’s repo details including name, usage and status. You can use the column headings to sort the list. You can enter a repo name or a status, red, orange or green, to filter the list.

Repos whose status is Down are marked with a red (<img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2FsK0GhqkOgDsWt2gx537w%2Fimage.png?alt=media&#x26;token=090da664-054e-4b8a-80ed-064101b4380f" alt="" data-size="line">), error status.

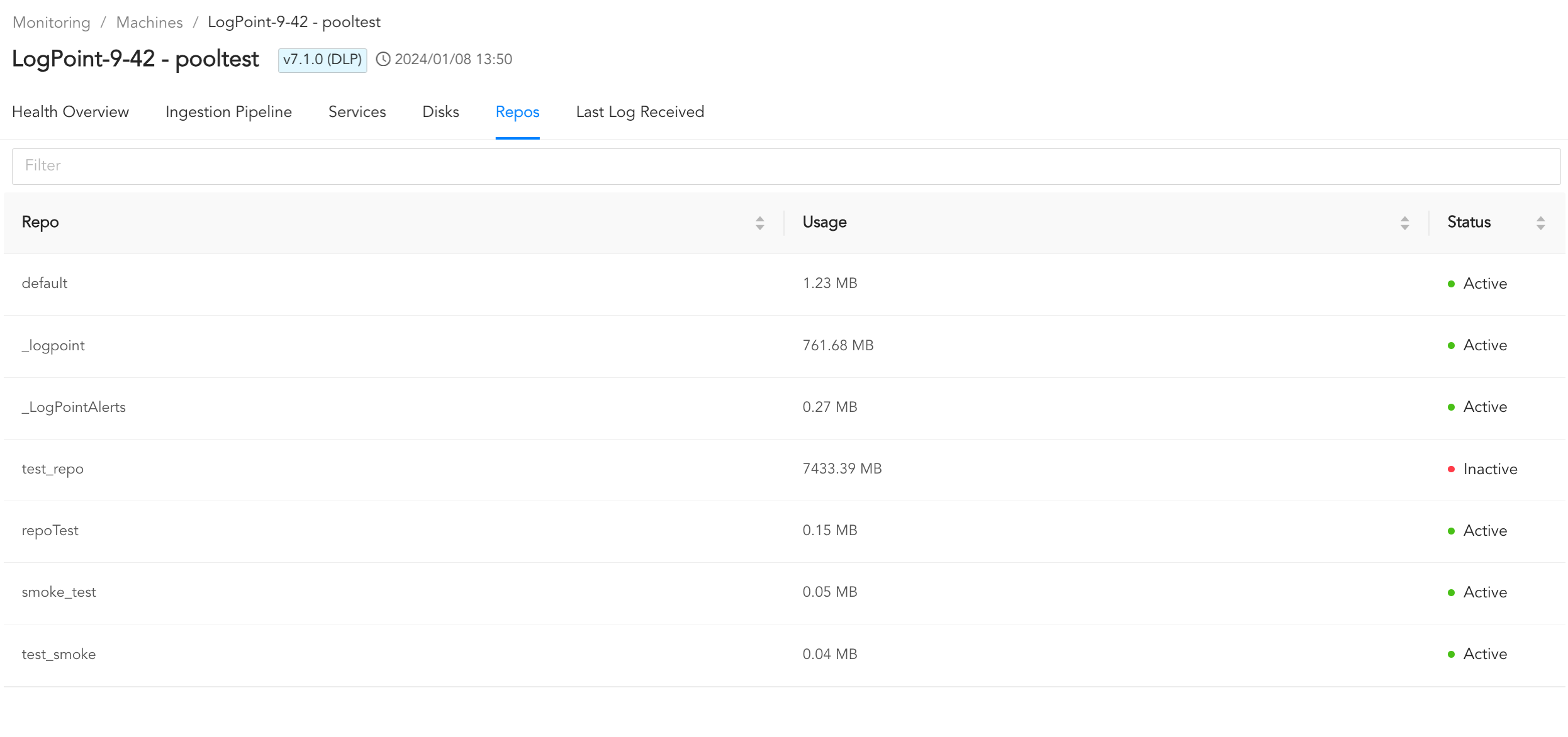

<figure><img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2F02RxzFDwzi9v1tNVmk2r%2Fimage.png?alt=media&#x26;token=cd5ac0f9-05b2-401d-b1ae-58001c08b09f" alt=""><figcaption><p>Repos Monitoring</p></figcaption></figure>

{% hint style="success" %}
**Status** is only visible for Logpoint v.7.3.1 and later.
{% endhint %}

## Last Log Received

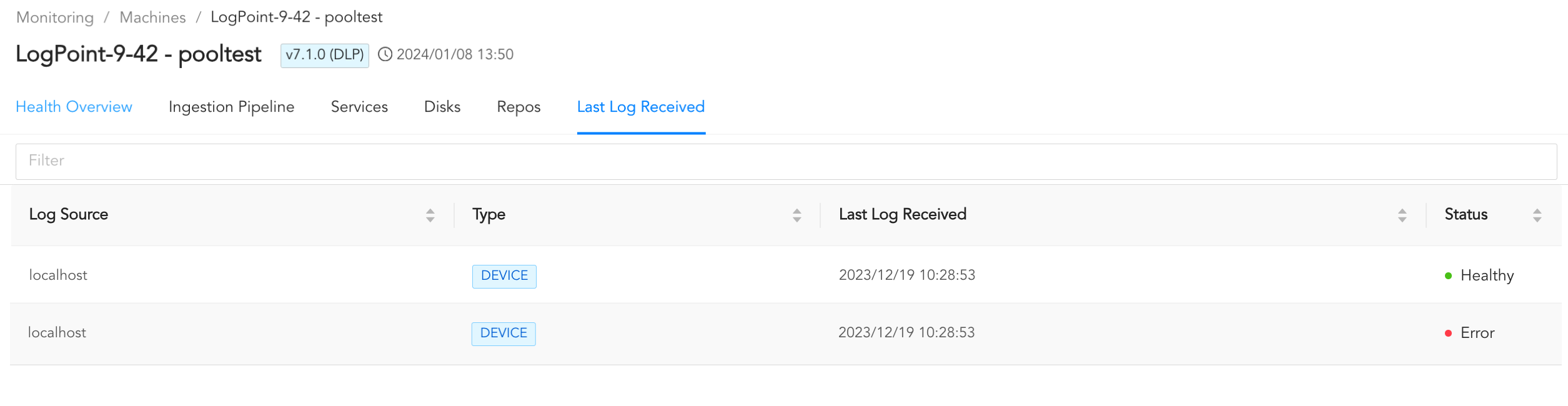

**Last Log Received** lists the log sources where the last logs originated in addition to their name, type, last log received timestamp and status. Enter the name or a status indicator to filter the list. Use the column headings to sort the list.

If the Last Log Received exceeds their threshold, their status is marked Error with red (<img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2FrlW47kprgKyuMyhtkMbR%2Fimage.png?alt=media&#x26;token=ee964240-fb36-4183-ad54-ccd09cb79ea6" alt="" data-size="line">), Warning with amber (<img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2FV1LkOvNYXgbkZfSpP6XD%2Fimage.png?alt=media&#x26;token=3266d43b-fc28-4764-9e9a-b411c729cd82" alt="" data-size="line">) or Healthy with green (<img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2FmDK48AFXzrJUTB6dIu6z%2Fimage.png?alt=media&#x26;token=720c38ce-73eb-4f67-88be-709ba3dccf53" alt="" data-size="line">).

When **Last Log Received** has the status N/A it has the status **Inactive** and is marked in grey (<img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2FFqswz5QRiOgvvzOuX4n5%2Fimage.png?alt=media&#x26;token=270358de-fdc9-4c24-8bdd-228c48fedfbe" alt="" data-size="line">).

<figure><img src="https://3198401301-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FhzE0kPDYI002AO7fHbFv%2Fuploads%2FlKCeTwZXk0dC7bX5Oh20%2Fimage.png?alt=media&#x26;token=c05f8a80-b019-4110-a509-e723088f3cc4" alt=""><figcaption><p>Last Logs Monitoring</p></figcaption></figure>

{% hint style="success" %}
**Last Log Received** is only visible on Logpoint 7.3.1 and later.
{% endhint %}
