Appendix¶

Installing the Duo Security in the ADFS Server¶

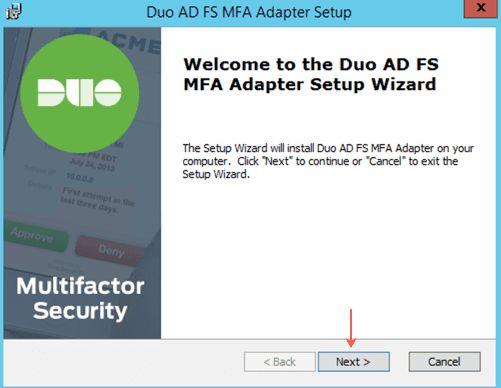

1. Launch the Duo AD FS installer package provided by Duo Security in the ADFS server.

2. Click Next.

Duo AD FS MFA Adapter Setup¶

3. Enter the Integration key.

4. Enter the Secret key.

5. Enter the API hostname.

   Note

   Refer to the Appendix section of the Duo Security Guide to retrieve the Integration key, the Secret key, and the API hostname.

6. Select Bypass Duo authentication when offline to enable login when the Duo Security is offline.

7. Click Next.

Duo Security Account Details¶

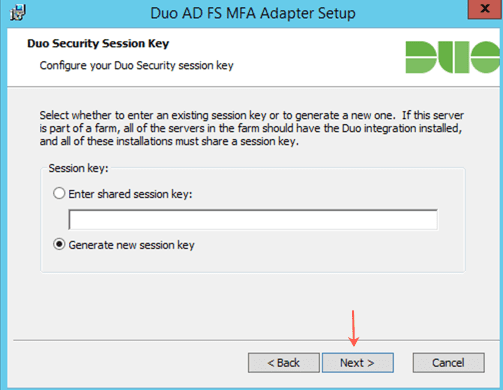

8. Select Generate new session key.

9. Click Next.

Generating New Duo Security Session Key¶

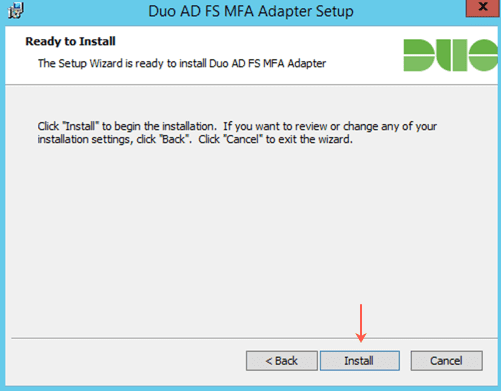

10. Click Install.

Installing Duo AD FS MFA Adapter¶

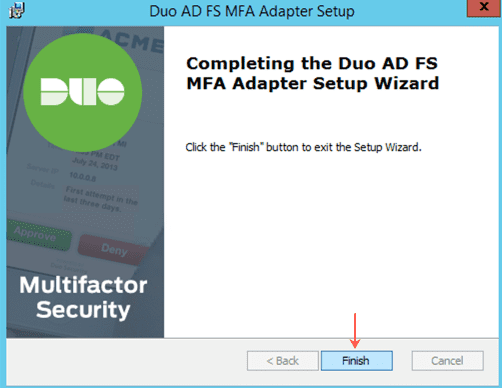

11. Click Finish.

Completing the Duo AD FS MFA Adapter Setup Wizard¶

Selecting Duo Security in the ADFS Server¶

1. Go to the AD FS Server >> AD FS >> Authentication Policies.

2. Click Edit Global Multi-factor Authentication.

Authentication Policies¶

3. Select Duo Authentication for AD FS 1.2.0.17.

4. Click OK.

Edit Global Authentication Policy Panel¶
