Click Configure from the left navigation bar.
Click Plugins.
Select CSV Enrichment Source from the Select Plugin Type drop-down.
Select LogPoint machines to configure CSV enrichment source. You can select multiple machines from different pools.
Note
You cannot select a subscriber LogPoint to configure CSV enrichment source. The subscriber LogPoint receives these configurations from its provider LogPoint.
You can use the Refresh List to sync data between LogPoint and Director Fabric.
Click Next.

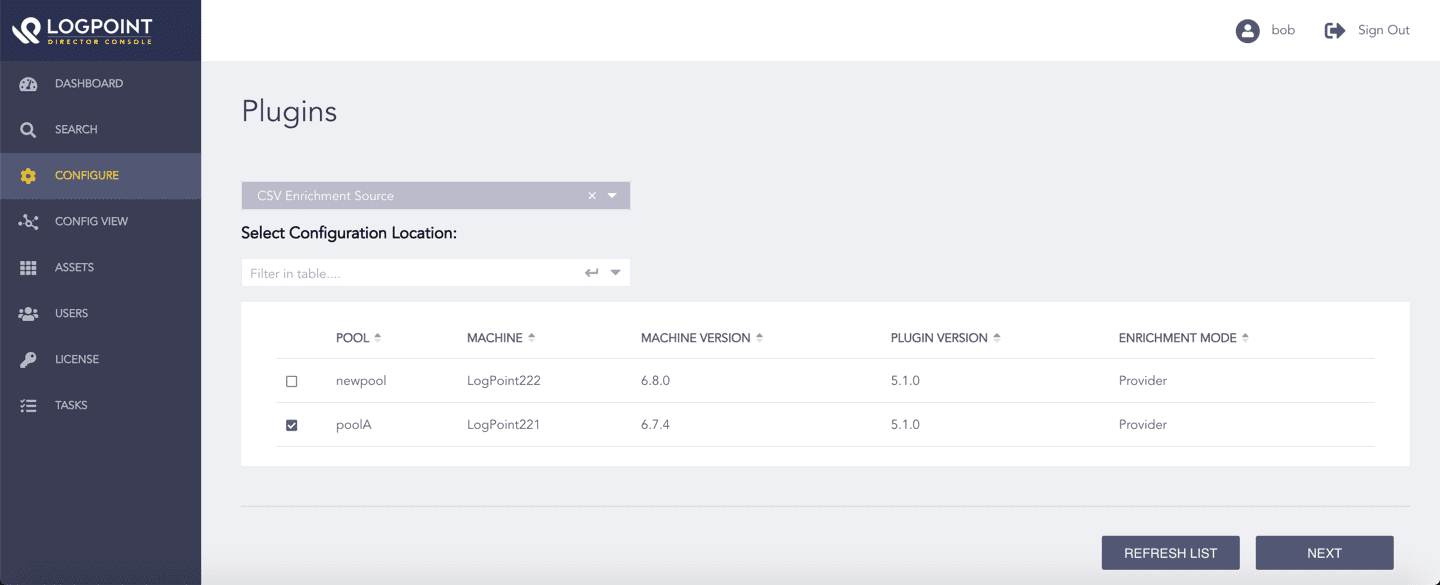

Selecting LogPoint Machines¶
Enter a Name.
Select the Charset.
Select a Delimiter. It is the type of data included in the CSV file.
Select Upload Options.
9.1. Select File to provide a CSV file. Click the upload area to browse, or drag and drop the CSV file.
CSVEnrichmentSource - File Upload¶
9.2. Select Url to upload a URL link to the CSV file.
9.2.1. Enter the CSV URL that links to the CSV File.

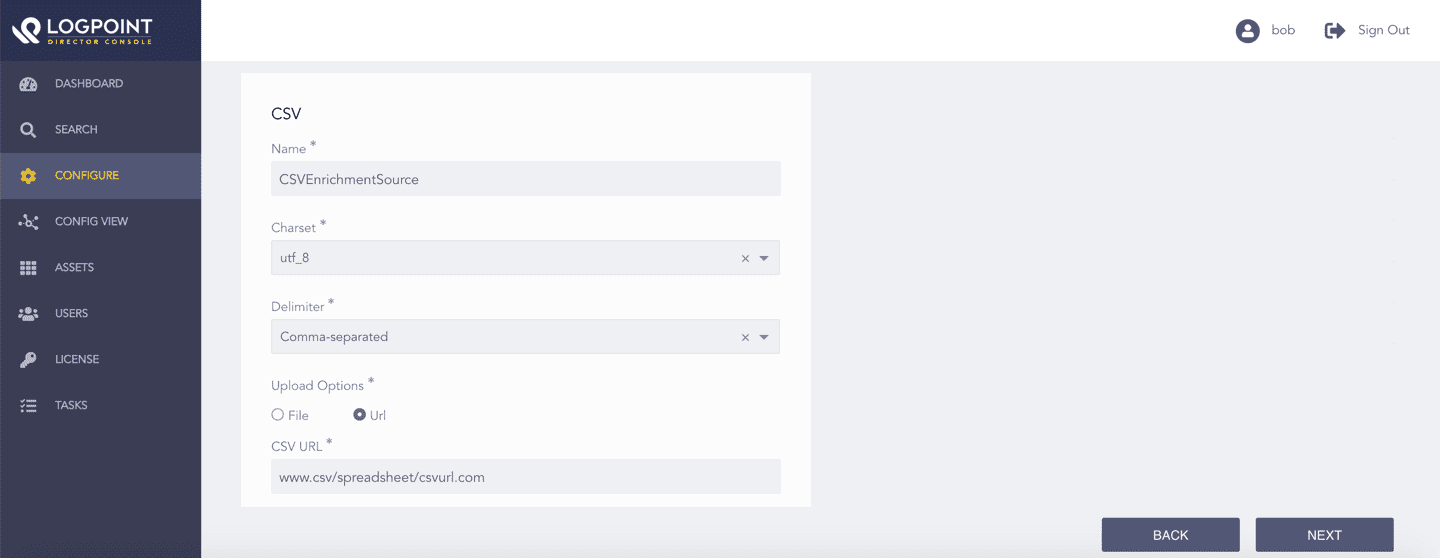

CSVEnrichmentSource - Fetch from URL¶
9.2.2. Select an Authentication method.
9.2.2.1. Select None if the provided CSV URL requires no authentication.
9.2.2.2. Select Basic if the provided CSV URL requires basic authentication. To access the URL, provide your Username and Password.

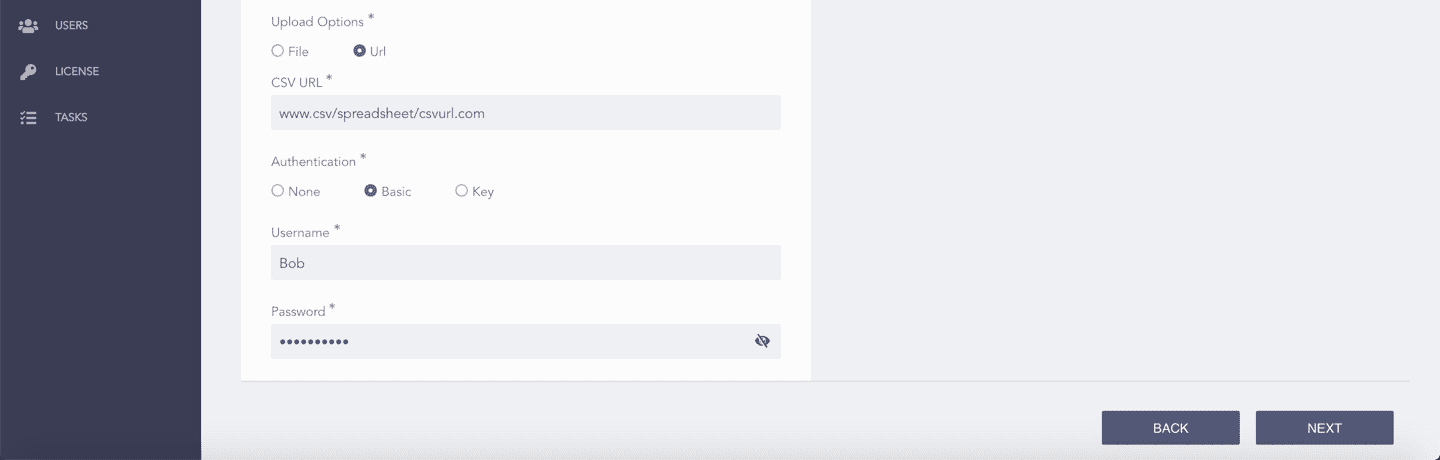

CSVEnrichmentSource - URL With Basic Authentication¶
9.2.2.3. Select Key if the provided CSV URL requires key-based authentication. To access the CSV file, provide your API Key.

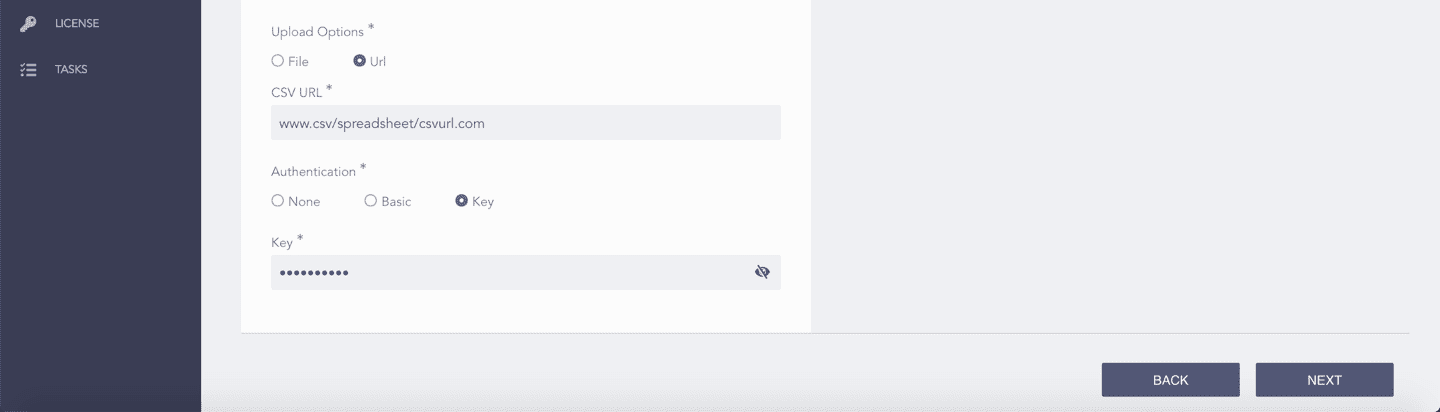

CSVEnrichmentSource - URL With Key Based Authentication¶
9.2.3. Select CSV file includes header if the CSV file contains field headers. If the file does not contain field headers, CSV Enrichment Source assigns default header names as Column1, Column2, …, and ColumnN, where N is the number of columns in your CSV file.
9.2.4. Click Upload.
9.2.5. In the Enrichment Options section, enter the Update Interval in Day, Hour, and Minute.

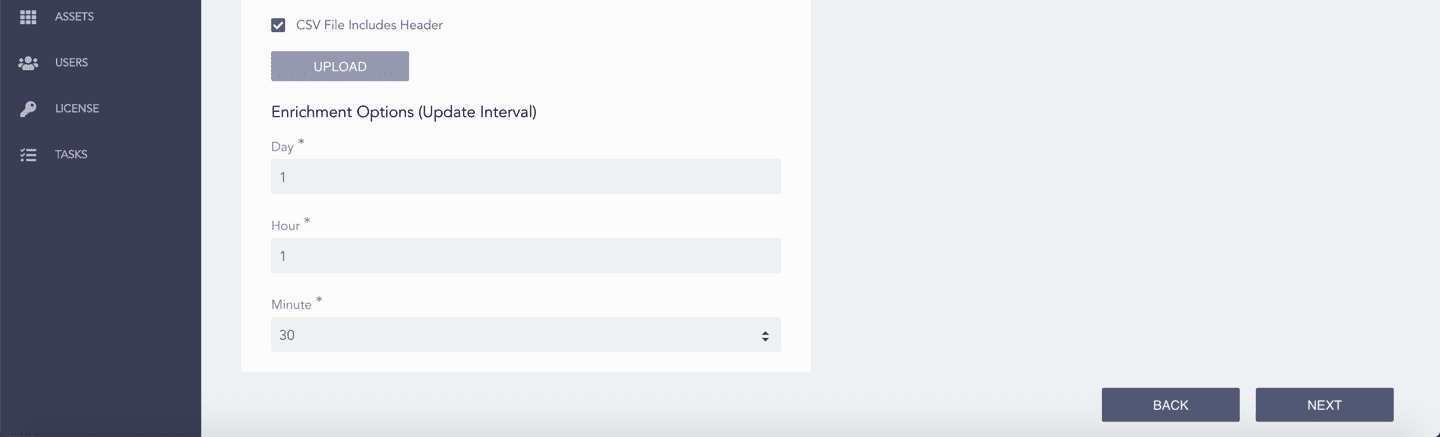

CSVEnrichmentSource - Update Interval¶
Click Next.
Review your changes. You can go Back to make any changes if necessary.
Click Finish.
Click OK.

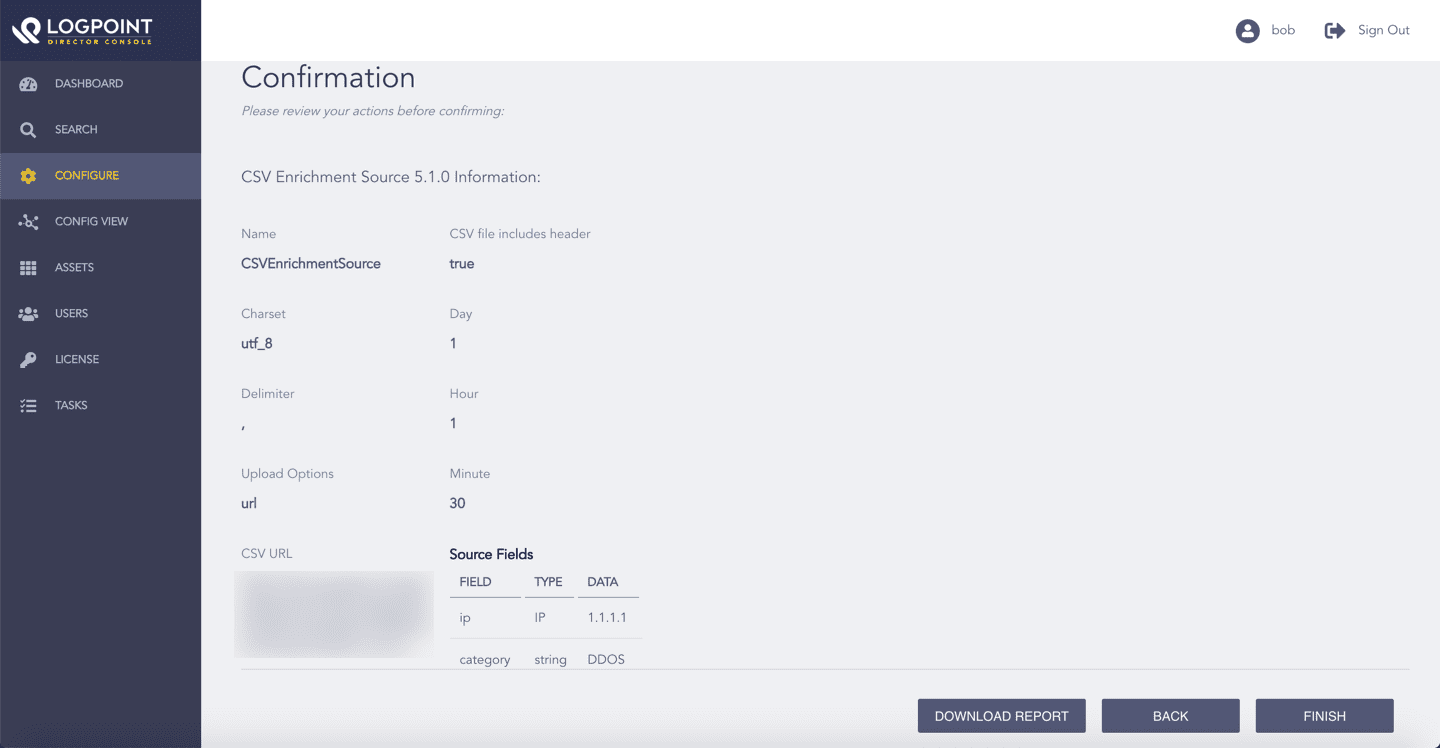

Confirming the Changes¶
