The Clustered Line chart is an extension of the Line Chart in which multiple lines are used to represent values of different categories. Silimar to the Clustered Column Chart, in a Clustered Line chart the x-axis contains the values of the grouping parameters, and the y-axis contains the scale to measure the value of an aggregation parameter of the particular grouping parameter.
Clustered Line Chart¶
The following query gives the output shown above.
| chart count(), avg(sig_id) by action
The Clustered Line chart supports three aggregation response types for representation of search results in the visualization. They are:
Response Type |
General Syntax |
|---|---|
| chart aggregation_parameter1, aggregation_parameter2 by grouping_parameter1, grouping_parameter2, ...,grouping_parametern
|
|
| timechart aggregation_parameter by grouping_parameter1, grouping_parameter2, ....., grouping_parametern
|
|
| timechart aggregation_parameter1, aggregation_parameter2, .... aggregation_parametern
|
Example:
sent_datasize=* source_address=* | chart max(sent_datasize), max(received_datasize) by source_
address order by max(sent_datasize), max(received_datasize) desc limit 10

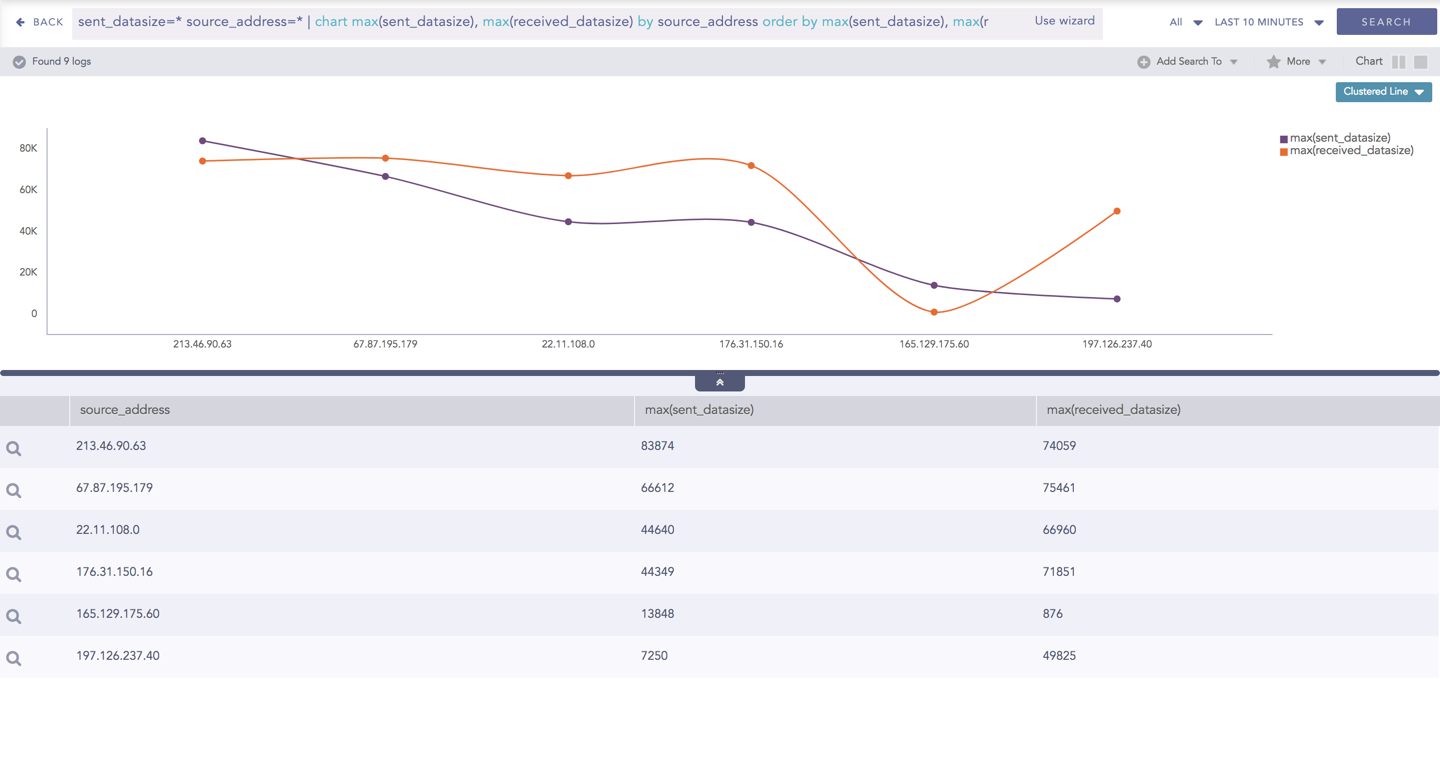

Clustered Line chart for Multiple Aggregation with Grouping¶
You can refer to Multiple Aggregation with Grouping for more details.
In the Timechart Single Aggregation with Grouping, the y-axis represents the aggregation value for every grouping parameter, and the x-axis displays the value of the timestamps. Similarly, the lines represent the values of the grouping parameter(s).
Example:
event_category=* | timechart count() by event_category

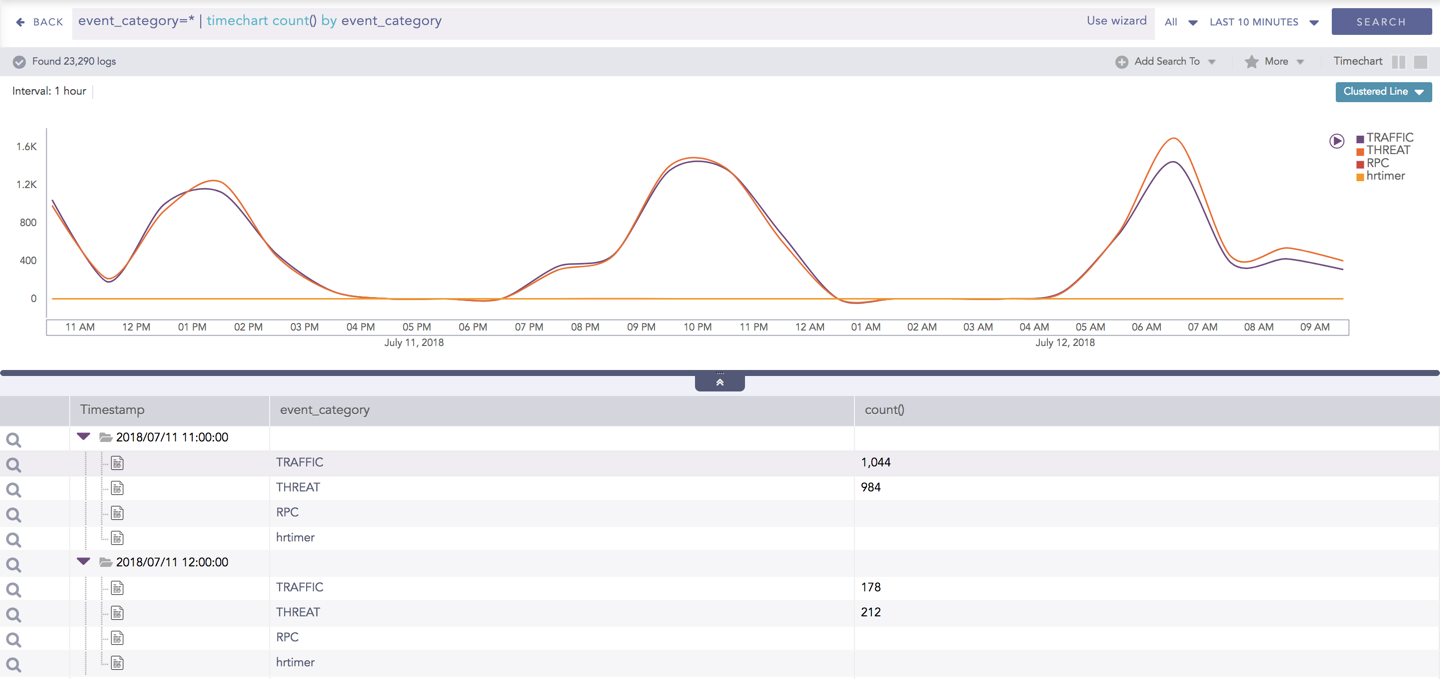

Clustered Line chart for Timechart Single Aggregation with Grouping¶
You can refer to Timechart Single Aggregation with Grouping for more details.
Alike to the Clustered Column chart, the y-axis represents values of the aggregation parameter, and the x-axis displays the value of the timestamps. Similarly, the lines represent the values of the aggregation parameters at a particular timestamp.
Example:
| timechart count("event_category" = "THREAT") as Dangerous, count("event_category" ="TRAFFIC") as Traffic

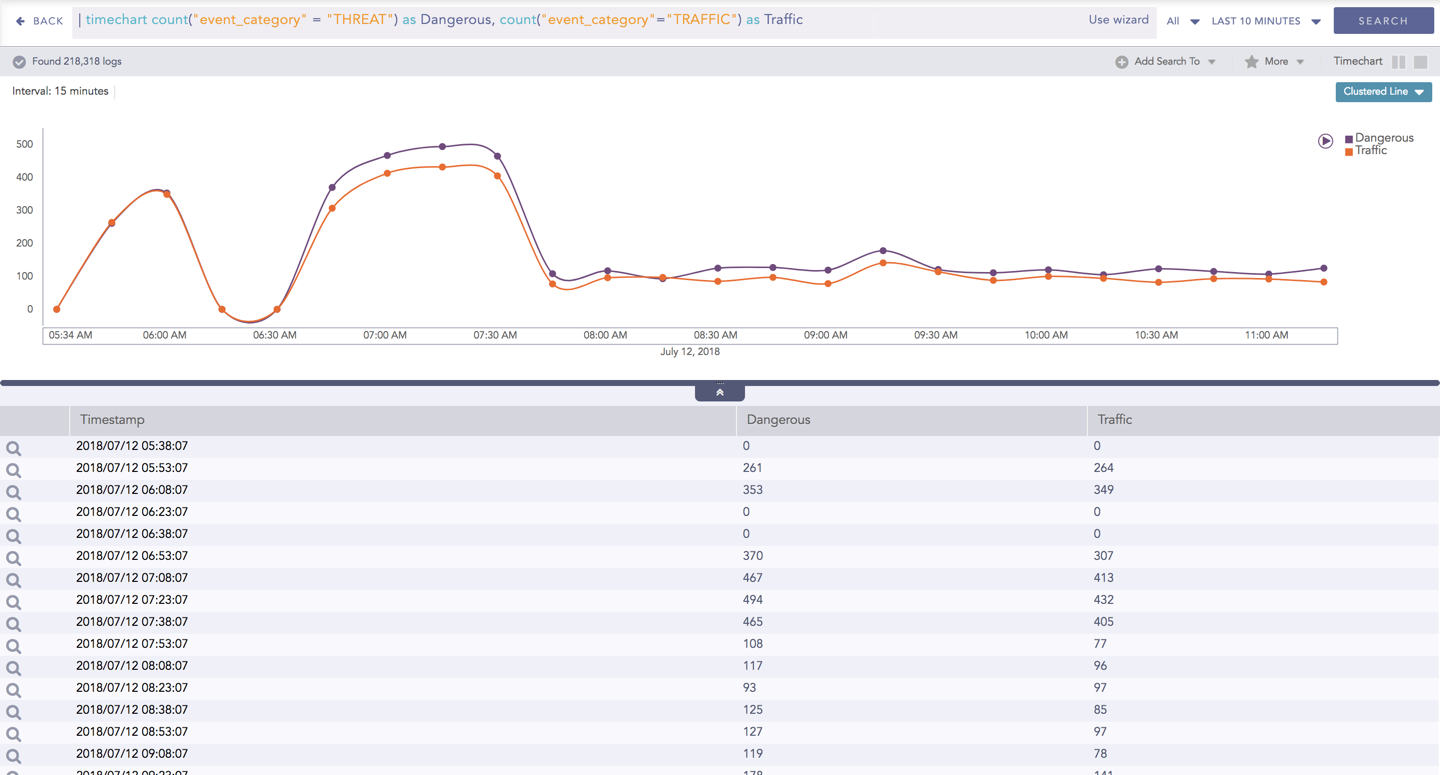

Clustered Line chart - Timechart Multiple Aggregation without Grouping¶
You can refer to Timechart Multiple Aggregation without Grouping for more details.
