HTTP Notification for Alert rules¶

Alert rule notification API allows you to set up and view details for HTTP notifications. You must create a JWT using the following scope to use the alert rule API. Go to Creating a JSON Web Token for more information.

Scope name	Function
alertrules:write	Setup Alert HTTP Notification
alertrules:read	View Alert HTTP Notification using API

Setup Alert HTTP Notification¶

To setup alert HTTP notifications, use /pluggables/Notification/HTTPNotification/create_api.

Endpoint URL

https://Logpoint-IP/pluggables/Notification/HTTPNotification/create_api

Method

POST

Request Headers

Content-Type = application/json
Authorization = Bearer <TOKEN>

Parameters

Parameters are data sent with the API request. You must include them in the request body as raw text.

Field	Type	Description
type	string	Alert rule notification type. Must be http. Optional Field.
http_url	string	IP address or domain name where the HTTP request must be sent. Mandatory Field. Example: https://example.com, https://8.8.8.8
http_request_type	string	The HTTP method to be used for the request, including POST, GET, PUT, DELETE, PATCH, or HEAD. Mandatory Field.
http_querystring	string	Query string to include in the request URL, like information about the logs. Optional Field.
notify_http	boolean	Whether to enable or disable HTTP notification. By default, it is true. Optional Field.
http_format_query	string	Formatted value of http_querystring to include in the request URL. For example: If you add http_querystring = ”x=34&y={{foo\|date}}”, where, foo is a reserved Jinja placeholder , it is formatted as http_format_query = “x34&y={{foo\| date(format, timezone)}}” The timezone and date format is used according to what the user selected in their User Preference. Optional Field.
http_body	string	The body content of the HTTP request. You must input JSON string. Optional Field.
protocol	string	Protocol used for the notification: HTTP or HTTPS. By default, it is HTTP. Optional Field.
dispatch_option	string	Option to send notification when the alert is triggered: * auto : to send every time the alert rule is triggered. * manual: to manually send from incident actions. By default, it is auto. Optional Field.
http_header	object	Custom HTTP headers to include in the request for authentication. Must be one of the following in additionalProp1: { “auth_type” : “api_token”, “auth_key”: “foo”, “auth_value”: “bar” } { “auth_type” : “basic_auth”, “auth_key”: “foo”, “auth_pass”: “bar” } { “auth_type” : “bearer_token”, “auth_key”: “foo”} { “auth_type” : “None”} Optional Field.
http_threshold_value	integer	Number of incidents that must be triggered before sending the HTTP notification. Optional Field.
http_threshold_option	string	Option to set the time for the http_threshold_value. Either minute, hour, or day. Optional Field.
ids	array of strings	List of alert rule IDs. Get the list of ids from Listing Alert Rules.

Request Example

{
    "type": "http",
    "http_url": "https://example.com/",
    "http_request_type": "string",
    "http_querystring": "string",
    "notify_http": true,
    "http_format_query": "",
    "http_body": "string",
    "protocol": "HTTPS",
    "dispatch_option": "auto",
    "http_header": {
        "additionalProp1": {}
    },
    "http_threshold_value": 0,
    "http_threshold_option": "minute",
    "ids": [
        "string"
    ]
}

Success Response

{
  "success": true,
  "data": [
    "string"
  ],
  "message": "string"
}

Validation Error Response

{
  "success": false,
  "validationErrors": {
    "additionalProp1": {}
  },
  "message": "string"
}

View Alert HTTP Notification using API¶

To view an alert HTTP notification, use /pluggables/Notification/HTTPNotification/read_api.

Endpoint URL

https://Logpoint-IP/pluggables/Notification/HTTPNotification/read_api

Method

GET

Request Header

Authorization = Bearer <TOKEN>

Parameters

Parameters are data sent with the API request. You must include it in parameters as Key and Value.

Field	Type	Description
id	string	Id of the created Alert Rule. Get the list of ids from Listing Alert Rules.

Request Example:

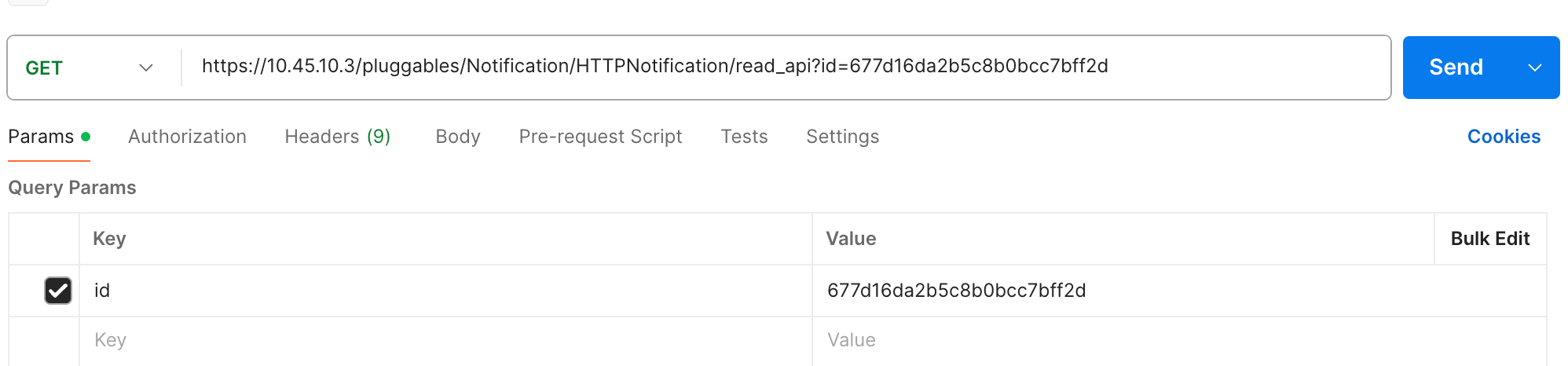

Viewing HTTP Notification using Postman¶

Success Response

{
    "success": true,
    "data": {
        "type": "string",
        "http_url": "https://example.com/",
        "http_request_type": "string",
        "http_querystring": "string",
        "notify_http": true,
        "http_format_query": "string",
        "http_body": "string",
        "dispatch_option": "string",
        "http_header": {
        "additionalProp1": "string",
        "additionalProp2": "string",
        "additionalProp3": "string"
        },
        "http_threshold_value": 0,
        "http_threshold_option": "minute",
        "protocol": "string"
    },
    "message": "string"
}

Validation Error Response

{
  "success": false,
  "validationErrors": {
    "additionalProp1": {}
  },
  "message": "string"
}
