Unix Analytics

Unix Analytics¶

Unix Dashboards¶

Adding the Unix Dashboards¶

Go to Settings >> Knowledge Base >> Dashboards.
Select VENDOR DASHBOARD from the drop-down.
Click Add from the Actions column.

Adding the Unix Dashboard¶

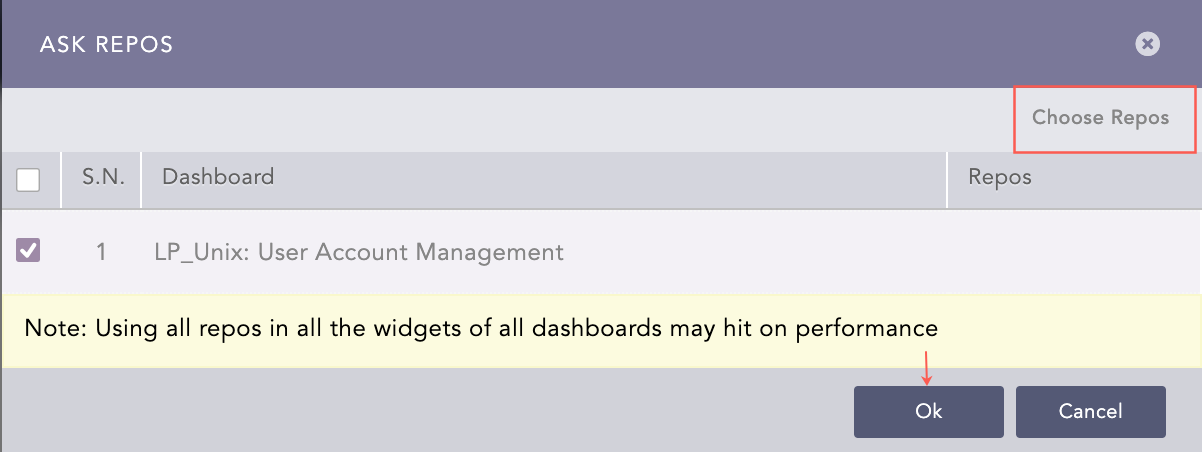

Click Choose Repos.

Selecting a Repo¶

Select the repo and click Done.

Selecting a Repo¶

Click Ok.

You can find the Unix dashboards under Dashboards.

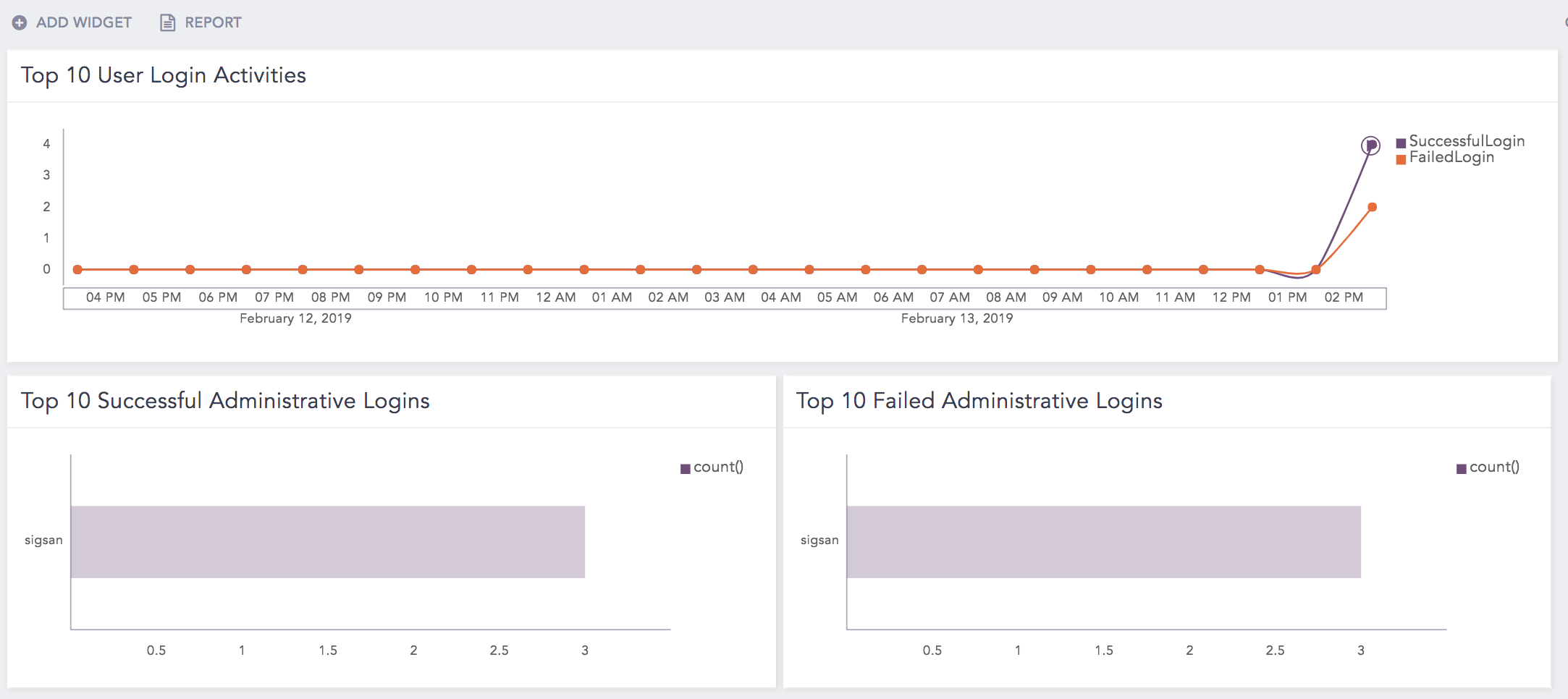

Unix Dashboard¶

Unix Widgets¶

Widgets available in LP_Unix Overview provide:

Widget Name	Description
Top 10 Process Running	An overview of the top 10 Unix processes, such as parents or child process, zombie or orphan process, or list running process.
Events Timetrend	A time trend of the Unix events.
Top 10 Commands Used	An overview of the top 10 most used Unix commands, such as sudo.
Top 10 Sudo Commands	An overview of the top 10 sudo commands that allows you to run programs with the security privileges of another user (by default, as the superuser).
Top 10 Sources in Denied Connection	An overview of the top 10 denied source addresses.
Top 10 Users in Successful Logins	An overview of the top 10 users who successfully logged in.
Top 10 Users in Failed Logins	An overview of the top 10 users who failed to log in.
Top 10 Sources in Successful User Logins	An overview of the top 10 source addresses in successful user logins.
Top 10 Sources in Failed User Logins	An overview of the top 10 source addresses in failed user logins.
User Login Status	An overview of the user login status, which may be a successful login or failed login.

Widgets available in LP_Unix Privilege Escalation provide:

Widget Name	Description
Session Duration	An overview of Unix user session so you can see the full context of what happened through the session by session start timestamp, session end timestamp, user, root ID, and session ID.
Root Privilege Command Execution	An overview of the commands executed that require privileges not granted to a standard UNIX user account by root session start timestamp, root session end timestamp, user, command execute timestamp, and command.
Top 10 Users in Privilege Escalation	An overview of the top 10 users in privilege escalation who have gained elevated access to resources that are normally protected from an application or user.
Top 10 Command Executed	An overview of the top 10 executed Unix commands.

Widgets available in LP_Unix:Authentication provide:

Widget Name	Description
Top 10 Successful Administrative Logins	An overview of the top 10 successful administrative logins. You need a list of ADMINS to run this query.
Top 10 Users in Successful Login	An overview of the top 10 users who logged in successfully.
Users in Successful Login - List	A detailed list of the successful user logins by a user, action, and source address.
Top 10 Users in Failed Login	An overview of the top 10 users who failed to log in successfully.
Users in Failed Login - List	A detailed list of the failed user logins by a user, action, and source address.
Top 10 Failed Administrative Logins	An overview of the top 10 admin users who could not log in successfully. You need a list of ADMINS to run this query.
Top 10 User Login Activities	An overview of the top 10 successful user activities, such as successful login or failed login.

Widgets available in LP_Unix:User Account Management provide:

Widget Name	Description
Created Accounts - List	A detailed list of created accounts.
User Accounts Created	An overview of the created user accounts.
User Accounts Deleted	An overview of the deleted user accounts.
Activities in User Account Management	An overview of the activities in the user account management, such as user adds or group adds.
Activities in User Account Management - List	A detailed list of activities in user account management by user and action.
Top 10 Actions in User Account Management	An overview of the top 10 actions performed in the user account management.
User Account Password Change	An overview of the changed user account password.
Locked User Account	An overview of the locked user account due to a bad password.
User Account Unlocked	An overview of the unlocked user account.
User Account Locked/Unlocked - Status	An overview of the locked or unlocked user account’s status by user, action, and object.
Newly Created Group - List	A detailed list of a newly created group.
Deleted Group - List	A detailed list of deleted groups.
Group User Deletion - List	A detailed list of the users deleted or removed from a group.
User Added in Group	An overview of the users added to a group.

Unix Alerts¶

Alerts available in Unix are:

LP_Unix Possible Bruteforce Attack¶

Trigger Condition: An account is not present but is used repeatedly to login. This may be a brute force attack by a bot, malware, or threat agent.
ATT&CK Category: Credential Access
ATT&CK Tag: Brute Force
ATT&CK ID: T1110
Minimum Log Source Requirement: Unix

Query:

norm_id=Unix ((label=Account label=Absent) OR (label=User label=Authentication label=Fail)) user=* | chart count() as cnt by user | search cnt>10

LP_Unix Kernel Logging Stopped¶

Trigger Condition: Unix Kernel stops logging that may violate the audit compliance of the organization.
ATT&CK Category: Defense Evasion
ATT&CK Tag: Impair Defenses, Indicator Blocking
ATT&CK ID: T1562, T1562.006
Minimum Log Source Requirement: Unix

Query:

norm_id=Unix OR norm_id=Kernel label=Logging label=Stop "process"="kernel" action="stopped"

LP_Unix User Deleted¶

Trigger Condition: A user account is deleted.
ATT&CK Category: Impact
ATT&CK Tag: Account Access Removal
ATT&CK ID: T1531
Minimum Log Source Requirement: Unix

Query:

norm_id=Unix label=User label=Account label=Management label=Delete label=Remove user=*

LP_Unix Password Expiry Changed for User¶

Trigger condition: Information on password expiry information is changed for a user.
ATT&CK Category: N/A
ATT&CK Tag: N/A
ATT&CK ID: N/A
Minimum Log Source Requirement: Unix

Query:

norm_id=Unix label=User label=Password label=Expire label=Account label=Management label=Change user=*

LP_Unix Group Deleted¶

Trigger condition: A group is deleted.
ATT&CK Category: N/A
ATT&CK Tag: N/A
ATT&CK ID: N/A
Minimum Log Source Requirement: Unix

Query:

norm_id=Unix label=Group label=Management label=Remove group=*

LP_Unix Security Violation¶

Trigger condition: Security violation is detected.
ATT&CK Category: N/A
ATT&CK Tag: N/A
ATT&CK ID: N/A
Minimum Log Source Requirement: Vmware

Query:

norm_id=Unix label=Security label=Violation message=*

LP_Unix User Account Unlocked¶

Trigger condition: Unlocked user account detected.
ATT&CK Category: N/A
ATT&CK Tag: N/A
ATT&CK ID: N/A
Minimum Log Source Requirement: Unix

Query:

norm_id=Unix label=User label=Account label=Management label=Unlock user=*

LP_Unix Excessive Denied Connection¶

Trigger condition: An excessive denied connection from the same source is detected i.e., 100 denied connections within two minutes.
ATT&CK Category: N/A
ATT&CK Tag: N/A
ATT&CK ID: N/A
Minimum Log Source Requirement: Unix

Query:

norm_id=Unix label=Connection label=Deny | chart count() as cnt by source_address | search cnt>100

LP_Unix User Removed from Privileged Group¶

Trigger condition: A user account is removed from the privileged group. For this alert to work, you must update the list ADMIN_GROUPS, with the name of privileged groups.
ATT&CK Category: N/A
ATT&CK Tag: N/A
ATT&CK ID: N/A
Minimum Log Source Requirement: Unix

Query:

norm_id=Unix label=User label=Group label=Management label=Member label=Remove user=* (group=admin OR group IN ADMIN_GROUPS)

LP_Unix Privilege Escalation Failed¶

Trigger condition: The user account tries to escalate the privilege and fails.
ATT&CK Category: N/A
ATT&CK Tag: N/A
ATT&CK ID: N/A
Minimum Log Source Requirement: Unix

Query:

norm_id=Unix label=User label=Fail (label=Login OR label=Authentication) user=root caller_user=*

LP_Unix User Session Alert¶

Trigger condition: A user session detected.
ATT&CK Category: N/A
ATT&CK Tag: N/A
ATT&CK ID: N/A
Minimum Log Source Requirement: Unix

Query:

[norm_id=Unix  "successful su for" user=root user=* process_id=*] as s1 join [norm_id=Unix command=exit role_id=* session_id=*] as s2 on s1.user=s2.user and s1.process_id=s2.role_id |
rename s1.log_ts as start_ts, s2.log_ts as end_ts, user as User, s2.role_id as role_id, s2.session_id as session_id | chart count() by start_ts, end_ts, User, role_id, session_id

Unix Labels¶

Labels available in LP_Unix are:

Labels	Description
Cron, Job	Events with the pam_unix(cron:session) message.
Cron, Job	Events with the /USR/SBIN/CRON message.
Cron, Job	Events with the CRON or cron process.
NSCD	Events with the nscd process.
Successful	Events with the Successful, Success, or Login successful status.
Fail	Events with the Failed, Fail, or Login failed status.
Login	Events with the object in authentication, keyboardinteractive/pam, publickey, or password.
User, Login, Successful	Events with the Accepted Password, Accepted publickey, or Session opened.
User, Login, Fail	Events with the Authentication Failure or Failed Password.
User, Logoff	Events with the Session closed message.
User, Account, Management, Password, Change	Events with the Password changed message.
User, Account, Management, Remove	Events with the Delete user message.
User, Account, Management, Create	Events with the A new user message.
Privilege, Access	Events with the sudo or su process.
Service, Start	Events with the Starting or Start action for all Unix services.
Service, Restart	Events with the Re-starting, Restarting, or Restart action for all Unix services.
Service, Stop	Events with the Stop or Stopping action for all Unix services.
FTP	Events with the ftp or ftpd process.
ssh	Events with the sshd process.
Command, Execute	Events with the Unix command.
Remove	Events with the Delete or Deleted action.
Modify	Events with the Replace action.
Start, Change, Edit	Events with the Beign Edit action.
Add	Events with the Account added action.
Remove	Events with the Account removed action.

Labels available in LP_Unix SSHD are:

Labels	Description
Session, Close	Events with the closed action or the closed status.
Session, Open	Events with the opened action or the opened status.

Labels available in LP_Common Unix Systems are:

Labels	Description
Open	Events with the opened message.
Close	Events with the closed action
Add	Events with the added action.
Delete	Events with the deleted action.
User, Delete	Events with the userdel process.
User, Add	Events with the useradd process.
Add	Events with the account added action.
Remove	Events with the removed action.
Successful	Events with the successful status.
Fail	Events with the failed status.

Labels available in LP_Unix Systemd are:

Labels	Description
Session, Start	Session start events.

Unix Report Templates¶

Using Unix Report Templates¶

Go to Report >> Report Template >> Vendor Report Templates.

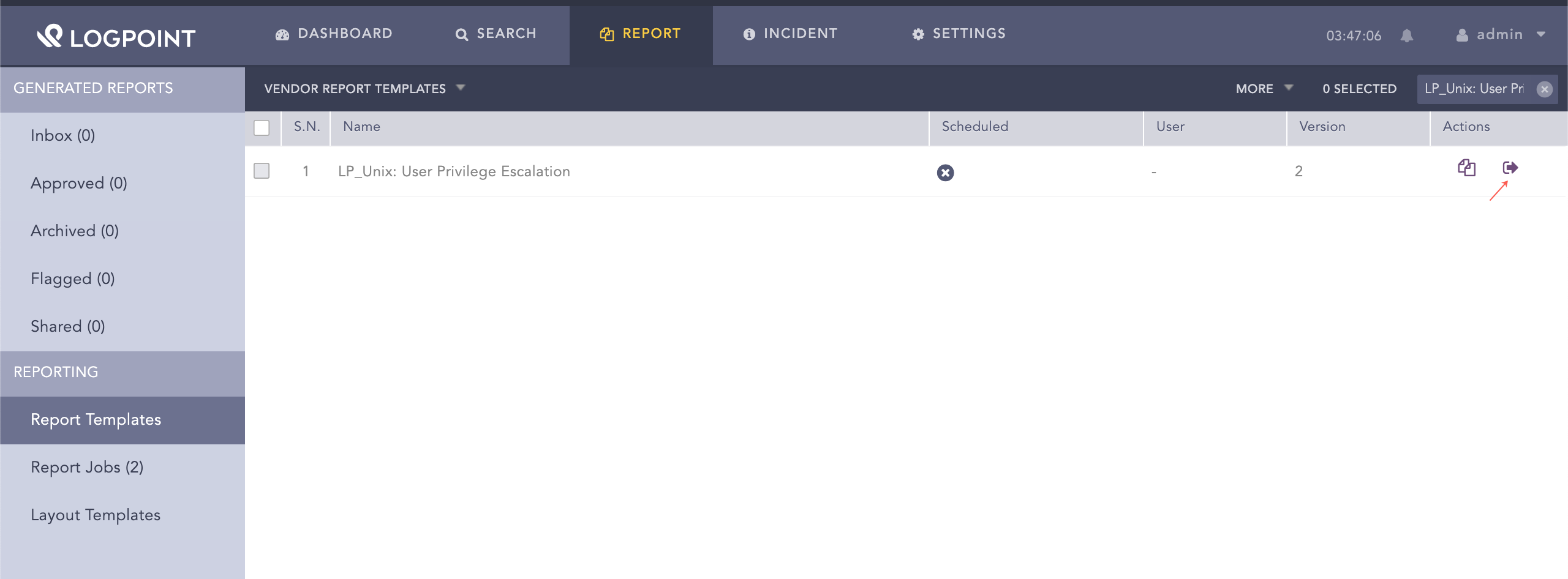

Using the Unix Report Template¶

Click Add from the Actions column.

Using Unix Report Template¶

Click Run this Report under the Actions column.

Running Unix Report Template¶

Select Repos, Time Zone, Time Range, Export Type, and enter the Email address.
Click Submit.

You can view the reports being generated under Report Jobs and download the generated reports from Inbox with .pdf extension by clicking PDF under the Download section.

A report contains widgets enabling you to analyze the data in different formats like graphs, time trends, lists, and text. Reports are time-bound, which means they are incident summaries over a period of time, for example, the last 24 hours or last five minutes. While generating a report, you can customize the calendar period according to your needs.

Report templates available for Unix are:

LP_Unix: User Privilege Escalation is the incident summary report that provides statistical information on the session duration, commands executed, users in privilege escalation, and root privilege command execution in different formats, such as graphs and lists.
LP_Unix: User Account Management is the incident summary report that provides statistical information on the user account created or deleted, activities in user account management, user account locked or unlocked, newly formed group or deleted group, and account status in different formats, such as graphs or lists.
LP_Unix: Authentication is the incident summary report that provides statistical information on the successful or unsuccessful administrative logins and user login activities in different formats, such as graphs or lists.
