Configuring VPCFlowLog

Configuring VPCFlowLog¶

Generating Parameters for VPCFlowLog Fetcher¶

To configure VPCFlowLog in Director Console, you must first obtain access key ID and secret access key from AWS.

Note

While we provide AWS-specific instructions in this guide, it’s important to be aware that the AWS interface may change over time. To ensure you have the most up-to-date information and to navigate any potential changes in the AWS interface, we recommend referring to the official AWS documentation or AWS Support resources.

Go to the AWS login page and enter your credentials. Sign in using the root account or Identity and Access Management (IAM) user credentials.
Click your username and click My Security Credentials in the drop-down.

AWS Account’s Dropdown Menu¶

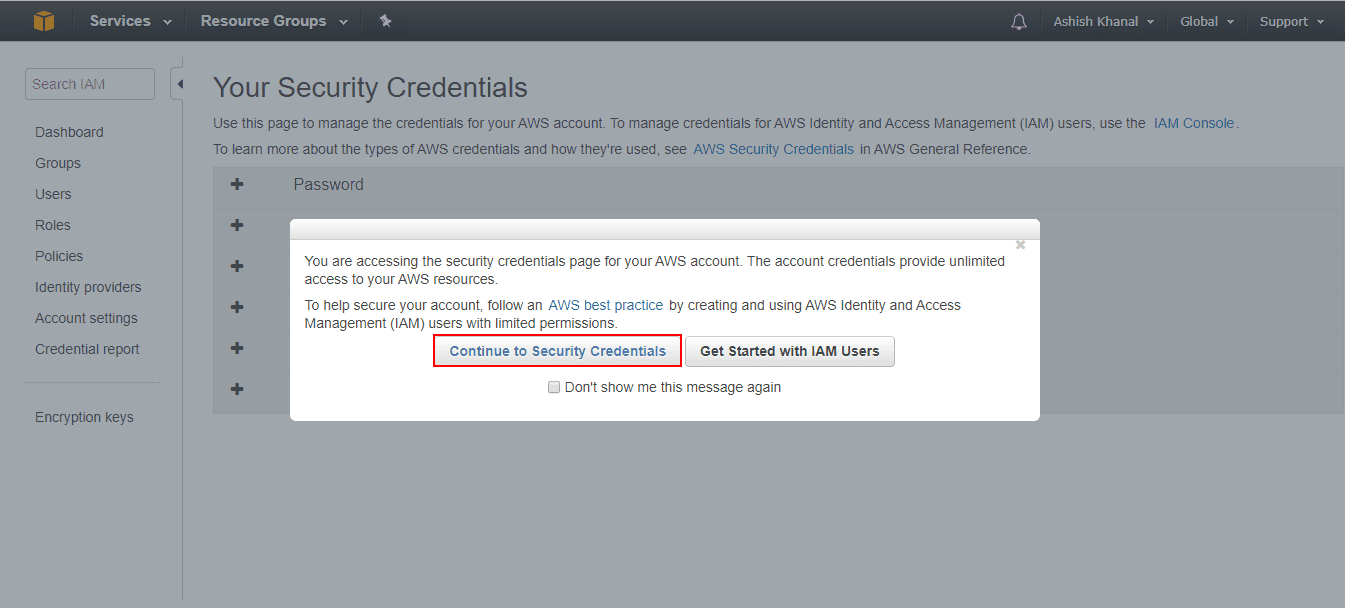

Click Continue to Security Credentials.

Security Credentials Confirmation¶

Expand the Access Keys (Access Key ID and Secret Access Key) and click Create New Access Key.

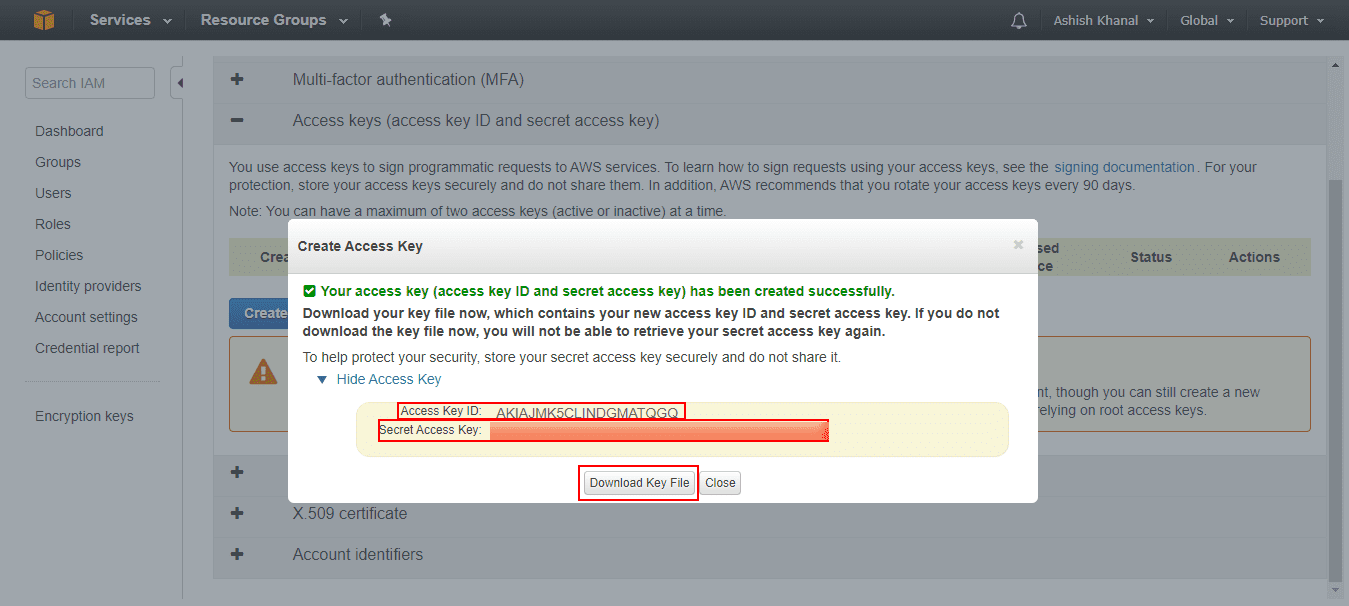

Select Show Access Key to find the access key ID and secret access key, or select Download Key File to download a CSV file containing them.

Write down the access key ID and secret access key or download the file containing them, as they can’t be retrieved later. If you close the window without saving them, create new ones.

Access and Secret Keys¶

Configuring VPCFlowLog¶

You can configure VPCFlowLog in a Fabric-enabled Logpoint using the LogSources - Create API.

Endpoint URL:

https://api-server-host-name/configapi/{pool_UUID}/{logpoint_identifier}/LogSources

Method:

POST

Parameters:

Field	Label in UI	Type	Description
dc_metadata	-	json	Information related to VPCFlowLog template created in the Director Console. Optional Field.
description	Description	String	Additional information about the VPCFlowLog. Optional Field.
documentation_link	Documentation Link	String	URL or hyperlink that points to external documentation or reference materials associated to VPCFlowLog. Optional Field.
logo	Logo	String	Base64 encoded logo image. Optional Field.
name	Name	String	Name of the VPCFlowLog log source in Logpoint. Mandatory Field.
type	-	String	Type or category of VPCFlowLog. Mandatory Field.
vendor_name	Vendor Name	String	Name of vendor where the log data originates. Optional Field.
config	-	json	Configuration of VPCFlowLog. Source, connector, routing, normalization and enrichment must be configured for VPCFlowLog to fetch logs. Mandatory Field.

Source¶

In source, you can add details about AWS VPCFlowLog from where the VPCFlowLog fetches logs.

Parameters:

Field	Label in UI	Type	Description
name	Name	String	Name for the VPCFlowLog Log Source. Mandatory Field.
interval	Fetch Interval (min)	Integer	The frequency at which data is retrieved in minutes. Mandatory Field.
charset	Charset	String	Existing Logpoint charset. Obtain it using the Charsets - List API. Mandatory Field.
timezone	Time Zone	String	AWS VPCFlowLog timezone. Mandatory Field.

Connector¶

In connector, you can configure how VPCFlowLog and AWS VPCFlowLog communicate with each other.

Field	Label in UI	Type	Description
endpoint_url	Endpoint URL	String	Endpoint URL for AWS. If you use Amazon S3’s services, the URL is https://s3.amazonaws.com by default. If you are using a third-party service that stores logs in the Amazon S3 bucket, enter the URL of the service that you are using.
access_key	Access Key ID	String	AWS VPCFlowLog Access Key ID. Mandatory Field.
secret_key	Secret Key ID	String	AWS VPCFlowLog Secret Key ID. Mandatory Field.
bucket_name	Bucket Name	String	Name of the Bucket from where logs are fetched. Mandatory Field.
region_name	Region	String	AWS Region. Mandatory Field.
filter_date	Logs From	String	The date from which VPCFlowLog starts fetching logs. Mandatory Field.
enable_proxy	Proxy Configuration	json	Proxy configuration of the VPCFlowLog server: status: Parameter to enable or disable the proxy server. IP: IP of the proxy server. port: Port of the proxy server. protocol: “HTTP” or “HTTPS” protocol used by the proxy server. Optional Field.

Routing¶

In routing, you can create repos and routing criteria for VPCFlowLog. Repos are locations where incoming logs are stored and routing criteria are created to determine the conditions under which these logs are sent to repos.

Parameters:

Field	Label in UI	Type	Description
repo_name	Repo name	String	Name of the repo where incoming logs are stored. Mandatory Field.
path	Path	String	Location to store incoming logs. Mandatory Field.
retention	Retention (Days)	String	Number of days logs are kept in a repository before they are automatically deleted. Mandatory Field.
remote_logpoint	Remote logpoint	String	Remote Logpoint where you can replicate the repo as a backup or for high availability. Optional Field.
key and value	Key and Value	String	The key-value pair is used to apply routing criteria to logs. Optional Field.
operation	Operation	String	Operation for logs that have the key-value pair. Optional Field.
repository	Repository	String	Repo to store logs. Optional Field.

Normalization¶

In normalization, you can select normalizers for the incoming logs. Normalizers transform incoming logs into a standardized format for consistent and efficient analysis.

Parameters:

Field	Label in UI	Type	Description
normalizers	Normalizer	String	Enter the name of the normalizer for the incoming logs. Mandatory Field.
type	Type	String	Type of the normalizer. Mandatory Field.

Enrichment¶

In enrichment, you can select an enrichment policy for the incoming logs. Enrichment policies are used to add additional information to a log, such as user information, device type or geolocation, before analyzing it.

Parameters:

Field	Label in UI	Type	Description
EnrichmentPolicy	Enrichment Policy	String	Enter the name of the enrichment policy for the incoming logs. Optional Field.

Request Example:

{
"data": {
    "name": "VPCFlowLog",
    "type": "S3Fetcher",
    "vendor_name": "AWS",
    "logo": "",
    "description": "Fetches AWS VPC Flow Logs from Amazon S3 buckets, including information about the IP traffic to and from your Virtual Private Cloud (VPC) network interfaces from Amazon S3 buckets or third-party services using Amazon S3 storage.",
    "config": {
        "Source": {
            "name": "VPCFlowLog",
            "interval": 60,
            "charset": "utf_8",
            "timezone": "UTC"
        },
        "Connector": {
            "endpoint_url": "https://s3.amazonaws.com",
            "access_key": "AKIAIOSFODNN7EXAMPLE",
            "secret_key": "wJalrXUtnFEMI/K7MDENG/bPxRfiCYEXAMPLEKEY",
            "bucket_name": "Krupa",
            "region_name": "af-south-1",
            "filter_date": "2024-07-18T07:12:02.536Z",
            "parser": "LineParser",
            "enable_proxy": false,
            "protocol": "http"
        },
        "RoutingPolicy": {
            "routing_criterion": [
                {
                    "id": "7deb03cc-1b5c-401d-9e6a-c80041c06965",
                    "key": "KEY",
                    "drop": "store",
                    "repo": "_logpoint",
                    "value": "VALUE",
                    "type": "KeyPresentValueMatches"
                }
            ],
            "catch_all": "_logpoint"
        },
        "NormalizationPolicy": {
            "normalizers": [
                {
                    "name": "VPCFlowLogCompiledNormalizer",
                    "type": "compiled"
                }
            ]
        }
    },
    "documentation_link": "https://docs.logpoint.com/docs/vpcflowlog/en/release-5.0.1/index.html",
    "template_vid": "LOGSOURCE_93",
    "dc_metadata": {
        "template": "da8986ab-1cdb-47d9-813b-04197efdbcd2",
        "templateVersion": "1"
    }
}

}

Success Response:

{
  "status": "Success",
  "message": "monitorapi/{pool_UUID}/{logpoint_identifier}/orders/{request_id}"
}

Editing a VPCFlowLog Configuration¶

You can edit a VPCFlowLog configuration in a Fabric-enabled Logpoint using the PluginConfiguration - Edit API.

Endpoint URL:

https://api-server-host-name/configapi/{pool_UUID}/{logpoint_identifier}/LogSources/{id}

Method:

PUT

Parameters:

Field	Label in UI	Type	Description
id	–	String	VPCFlowLog UUID. Obtain it using the Devices - List API. Mandatory

Request Example:

{
"data": {
    "name": "VPCFlowLog",
    "type": "S3Fetcher",
    "vendor_name": "AWS",
    "logo": "",
    "description": "Fetches AWS VPC Flow Logs from Amazon S3 buckets, including information about the IP traffic to and from your Virtual Private Cloud (VPC) network interfaces from Amazon S3 buckets or third-party services using Amazon S3 storage.",
    "config": {
        "Source": {
            "name": "VPCFlowLog",
            "interval": 60,
            "charset": "utf_8",
            "timezone": "UTC"
        },
        "Connector": {
            "endpoint_url": "https://s3.amazonaws.com",
            "access_key": "AKIAIOSFODNN7EXAMPLE",
            "secret_key": "wJalrXUtnFEMI/K7MDENG/bPxRfiCYEXAMPLEKEY",
            "bucket_name": "Krupa",
            "region_name": "af-south-1",
            "filter_date": "2024-07-18T07:12:02.536Z",
            "parser": "LineParser",
            "enable_proxy": false,
            "protocol": "http"
        },
        "RoutingPolicy": {
            "routing_criterion": [
                {
                    "id": "7deb03cc-1b5c-401d-9e6a-c80041c06965",
                    "key": "KEY",
                    "drop": "store",
                    "repo": "_logpoint",
                    "value": "VALUE",
                    "type": "KeyPresentValueMatches"
                }
            ],
            "catch_all": "_logpoint"
        },
        "NormalizationPolicy": {
            "normalizers": [
                {
                    "name": "VPCFlowLogCompiledNormalizer",
                    "type": "compiled"
                }
            ]
        }
    },
    "documentation_link": "https://docs.logpoint.com/docs/vpcflowlog/en/release-5.0.1/index.html",
    "id": "LogSources/76231f3b-1903-41d8-88ad-a3bbf0a9302d"
    }
}

}

Success Response:

 {
   "status": "Success",
   "message": "monitorapi/{pool_UUID}/{logpoint_identifier}/orders/{request_id}"
}

Deleting a VPCFlowLog Configuration¶

You can delete a VPCFlowLog configuration in a Fabric-enabled Logpoint using the PluginConfiguration - Trash API.

Endpoint URL:

https://api-server-host-name/configapi/{pool_UUID}/{logpoint_identifier}/LogSources/{id}

Method:

Delete

Parameters:

FIELD	LABEL IN UI	TYPE	DESCRIPTION	REQUIRED
id	–	String	VPCFlowLog UUID. Obtain it using the Devices - List API.	Mandatory

Success Response:

 {
   "status": "Success",
   "message": "monitorapi/{pool_UUID}/{logpoint_identifier}/orders/{request_id}"
}
