getalloweddata

getalloweddata¶

You can retrieve information about your Logpoint using getalloweddata. It has five API actions and two mandatory parameters: username and secret_key. They are required for Authorization and Authentication. It includes an additional parameter, type, which specifies the type of information to be retrieved from Logpoint.

While the following endpoints use the POST method, they function as GET.

API Action	Request Type	Additional Parameter	Parameter Value
Getting User Timezone	POST	type	user_preference
Getting Logpoint	POST	type	loginspects
Getting Repos	POST	type	logpoint_repos
Getting Devices	POST	type	devices
Getting Livesearches	POST	type	livesearches

Getting User Timezone¶

To retrieve timezone and date and time format.

POST

https://Logpoint-IP/getalloweddata

Parameter	Value Type	Description
username	String	Logpoint username
secret_key	String	Access key to uniquely identify an authorized user. Go to Finding the Access Key for information on retrieving it.
type	String	An identifier for the API action. Its value must be user_preference.

Parameters¶

Parameters are data sent along with the request to retrieve information. It should be included in the request body as x-www-form-urlencoded. Content-Type, Content-Length, and Host must be passed in the request header. Content-Type should be application/x-www-form-urlencoded.

{
        "username" : "John",
        "secret_key" : "a1b2c3d4e5f6g7h8i9j0k1",
        "type" : "user_preference"
}

Request Example¶

Timezone and Datetime using Postman.¶

cURL Code¶

curl --location 'https://10.45.10.172/getalloweddata' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--data-urlencode 'username=John' \
--data-urlencode 'secret_key=a1b2c3d4e5f6g7h8i9j0k1' \
--data-urlencode 'type=user_preference'

Success Response¶

{
        "success": true,
        "timezone": "UTC",
        "date_format": "%Y/%m/%d",
        "hour_format": "24 Hour"
}

Response Parameters¶

Response Parameters	Value Type	Description
success	Boolean	Returns True if the API call is successful; otherwise it returns False.
timezone	String	Returns the timezone associated with the user’s settings.
date_format	String	Returns the format associated with the user’s settings. The format %Y/%m/%d represents the date as a four-digit year, month, and day separated by slashes. (Example: 2024/09/18)
hour_format	String	Returns the format associated with the user’s settings.

Getting Logpoint¶

To retrieve name and IP address of all the Logpoint configured in a distributed setup.

POST

https://Logpoint-IP/getalloweddata

Parameter	Value Type	Description
username	String	Logpoint username
secret_key	String	Access key to uniquely identify an authorized user. Go to Finding the Access Key for information on retrieving it.
type	String	An identifier for the API action. Its value must be loginspects.

Parameters¶

Parameters are data sent along with the request to retrieve information. It should be included in the request body as x-www-form-urlencoded.

{
        "username" : "John",
        "secret_key" : "a1b2c3d4e5f6g7h8i9j0k1",
        "type" : "loginspects"
}

Request Example¶

Logpoint IP Address using Postman.¶

cURL Code¶

curl --location 'https://10.45.10.172/getalloweddata' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--data-urlencode 'username=John' \
--data-urlencode 'secret_key=a1b2c3d4e5f6g7h8i9j0k1' \
--data-urlencode 'type=loginspects'

Success Response¶

{
        "success": true,
        "allowed_loginspects": [
        {
                "name": "Logpoint",
                "ip": "127.0.0.1"
        }
        ]
}

Response Parameters¶

Response Parameters	Value Type	Description
success	Boolean	Returns True if the API call is successful; otherwise it returns False.
allowed_loginspects	Array	Returns a list of Logpoint name and their IP address configured in the distributed setup.

Getting Repos¶

To retrieve name and IP address of all the repos configured in a Logpoint.

POST

https://Logpoint-IP/getalloweddata

Parameter	Value Type	Description
username	String	Logpoint username
secret_key	String	Access key to uniquely identify an authorized user. Go to Finding the Access Key for information on retrieving it.
type	String	An identifier for the API action. Its value must be logpoint_repos.

Parameters¶

Parameters are data sent along with the request to retrieve information. It should be included in the request body as x-www-form-urlencoded.

{
        "username" : "John",
        "secret_key" : "a1b2c3d4e5f6g7h8i9j0k1",
        "type" : "logpoint_repos"
}

Request Example¶

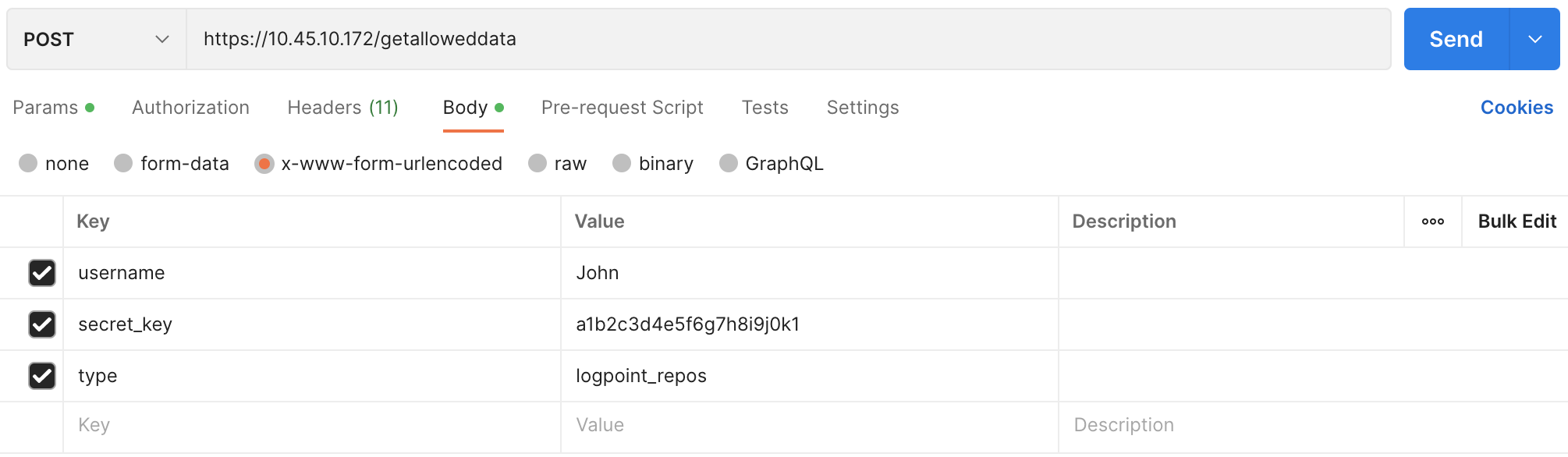

Repo IP Address using Postman.¶

cURL Code¶

curl --location 'https://10.45.10.172/getalloweddata' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--data-urlencode 'username=John' \
--data-urlencode 'secret_key=a1b2c3d4e5f6g7h8i9j0k1' \
--data-urlencode 'type=logpoint_repos'

Success Response¶

{
        "success": true,
        "allowed_repos": [
                {
                        "repo": "default",
                        "address": "127.0.0.1:5504/default"
                },
                {
                        "repo": "_Logpoint",
                        "address": "127.0.0.1:5504/_Logpoint"
                }
                ....
                ....
                ],
        "Logpoint": [
                {
                        "name": "Logpoint",
                        "ip": "127.0.0.1"
                }
        ]
}

Response Parameters¶

Response Parameters	Value Type	Description
success	Boolean	Returns True if the API call is successful; otherwise it returns False.
allowed_repos	Array	Returns a list of name and IP address of all the repos configured in a Logpoint.

Getting Devices¶

To retrieve name and IP address of all the devices configured in a Logpoint.

POST

https://Logpoint-IP/getalloweddata

Parameter	Value Type	Description
username	String	Logpoint username
secret_key	String	Access key to uniquely identify an authorized user. Go to Finding the Access Key for information on retrieving it.
type	String	An identifier for the API action. Its value must be devices.

Parameters¶

Parameters are data sent along with the request to retrieve information. It should be included in the request body as x-www-form-urlencoded.

{
        "username" : "John",
        "secret_key" : "a1b2c3d4e5f6g7h8i9j0k1",
        "type" : "devices"
}

Request Example¶

Device IP Address using Postman.¶

cURL Code¶

curl --location 'https://10.45.10.172/getalloweddata' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--data-urlencode 'username=John' \
--data-urlencode 'secret_key=a1b2c3d4e5f6g7h8i9j0k1' \
--data-urlencode 'type=devices'

Success Response¶

{
        "success": true,
        "allowed_devices": [
                {
                        "127.0.0.1/127.0.0.1": "localhost",
                        "127.0.0.1/::1": "localhost",
                        "127.0.0.1/10.45.3.107": "107"
                }
                ],
        "Logpoint": [
                {
                        "name": "Logpoint",
                        "ip": "127.0.0.1"
                }
        ]
}

Response Parameters¶

Response Parameters	Value Type	Description
success	Boolean	Returns True if the API call is successful; otherwise it returns False.
allowed_devices	Array	Returns a list of name and IP address of all the devices configured in a Logpoint.

Getting Livesearches¶

To retrieve information related to the live searches performed for dashboards and alerts.

POST

https://Logpoint-IP/getalloweddata

Parameter	Value Type	Description
username	String	Logpoint username
secret_key	String	Access key to uniquely identify an authorized user. Go to Finding the Access Key for information on retrieving it.
type	String	An identifier for the API action. Its value must be livesearches.

Parameters¶

Parameters are data sent along with the request to retrieve information. It should be included in the request body as x-www-form-urlencoded.

{
        "username" : "John",
        "secret_key" : "a1b2c3d4e5f6g7h8i9j0k1",
        "type" : "livesearches"
}

Request Example¶

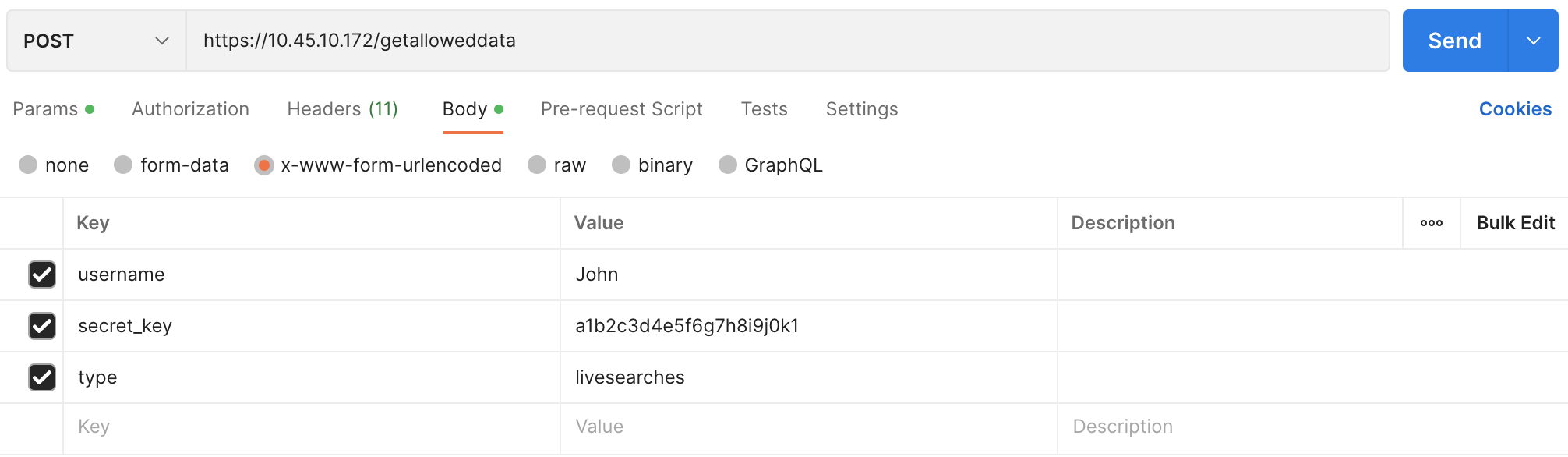

Live Searches using Postman.¶

cURL Code¶

curl --location 'https://10.45.10.172/getalloweddata' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--data-urlencode 'username=John' \
--data-urlencode 'secret_key=a1b2c3d4e5f6g7h8i9j0k1' \
--data-urlencode 'type=livesearches'

Success Response¶

{
        "success": true,
        "livesearches": [
                {
                        "searchname": "device_ip",
                        "description": "",
                        "query": "| chart count() by device_ip",
                        "query_info": {
                                "fieldsToExtract": [],
                                "aliases": [
                                        "count()"
                                ],
                                "success": true,
                                "query_filter": "",
                                "columns": [
                                        "count()"
                                ],
                                "query_type": "chart",
                                "lucene_query": "",
                                "grouping": [
                                        "device_ip"
                                ]
                        },
                        "timerange_day": 0,
                        "timerange_hour": 0,
                        "timerange_minute": 1,
                        "timerange_second": 0,
                        "limit": 100,
                        "tid": "",
                        "generated_by": "dashboard",
                        "vid": "",
                        "flush_on_trigger": false,
                        "life_id": "3287dec3b4012b50f63e15fd6cbe6f77dc56aa4b"
                        }
                ]
}

Response Parameters	Value Type	Description
success	Boolean	Returns True if the API call is successful; otherwise it returns False.
livesearches	Array of objects	Returns an array of live search details performed on the dashboard or alert.
searchname	String	Name of the live search.
description	String	Information about the live search
query	Object	The search query executed in Logpoint
query_info	String	Contains metadata of the search query, including extracted fields, aliases, filter criteria, and query type.
fieldsToExtract	Array of strings	Lists fields extracted from the data during the live search.
aliases	Array of strings	Defines aliases used in the search query, if any.
query_filter	String	Specifies any filters applied to the query.
columns	Array of strings	Lists the columns returned by the query, such as count().
query_type	String	Defines the type of query executed (Example: chart).
lucene_query	String	Represents any Lucene query filters applied to the data.
grouping	Array of strings	Specifies fields used to group the search results (Example: device_ip).
timerange_day	Integer	Specifies the day range of the live search data.
timerange_hour	Integer	Specifies the hour range of the live search data.
timerange_minute	Integer	Specifies the minute range of the live search data.
timerange_second	Integer	Specifies the second range of the live search data.
limit	Integer	Defines the maximum number of records that the live search query will return.
tid	String	The task ID associated with the live search, if applicable.
generated_by	String	The origin of the live search, such as dashboard.
vid	String	View ID associated with the live search, if applicable.
flush_on_trigger	Boolean	Returns True if the live search flushes data when triggered; otherwise, it returns False.
life_id	String	A unique identifier associated with the live search session.
