getsearchlogs¶

You can search and retrieve logs using getsearchlogs. Its two mandatory parameters are username and secret_key. They are required for Authorization and Authentication.

While the following endpoints use the POST method, they function as GET.

Parameters used to search logs¶

Parameter	Value Type	Description
query	String	A valid search query in Logpoint.
time_range	String	Default search time range of Logpoint.
Repo	Array/List	The repository where the logs are stored.
client_name	String	Interface of the search request. The default value is ‘UI’.
timeout	Integer	Waiting time (in seconds) for a request before canceling it.
search_id	String	Used to get logs of a search query. You receive it from the server only after the successful completion of a search request.
Limit	Integer	The maximum amount of search results to return in the final response. Only applicable in case of simple search queries and not in case of aggregation queries.

Getting Search Results¶

To get search results using Logpoint Search API, perform a search request with all required parameters. A successful request responds with a search_id, which can be used as a request parameter to receive logs resulting from the search query request.

Requesting the search_id¶

Perform a query-based search on requested repos for a limited number of logs within a defined time range. This API action responds with a search_id on successful completion.

POST

https://Logpoint-IP/getsearchlogs

Parameter

Value Type

Description

username

String

Logpoint username

secret_key

String

Access key to uniquely identify an authorized user. Go to Finding the Access Key for information on retrieving it.

requestData

JSON Object

A list of JSON objects containing the following parameters:

query: A valid Logpoint search query.
time_range: A time range for the search
limit: The number of search results
repos: IP address of the repos

Parameters¶

Parameters are data sent along with the request to retrieve information. It should be included in the request body as x-www-form-urlencoded. Content-Type, Content-Length, and Host must be passed in the request header. Content-Type should be application/x-www-form-urlencoded.

{
        "username" : "John",
        "secret_key" : "a1b2c3d4e5f6g7h8i9j0k1",
        "requestData": {
                "query": "|chart count() by device_ip",
                "time_range": "Last 24 hours",
                "limit": 100,
                "repos": ["127.0.0.1:5504/_Logpoint"]
                        }
        }

Request Example¶

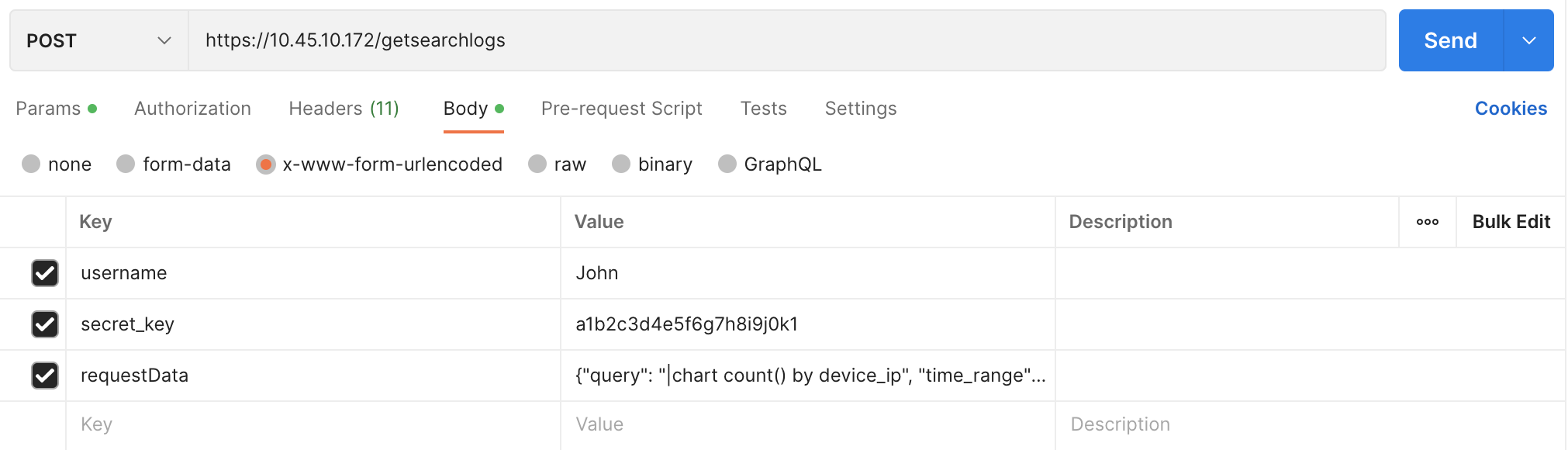

Search ID using Postman.¶

cURL Code¶

curl --location 'https://10.45.10.172/getsearchlogs' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--data-urlencode 'username=John' \
--data-urlencode 'secret_key=a1b2c3d4e5f6g7h8i9j0k1' \
--data-urlencode 'requestData={"query": "|chart count() by device_ip", "time_range": "Last 24 hours", "limit": 100, "repos": ["127.0.0.1:5504/_logpoint"]}'

Success Response¶

        {
"search_id": "23b4a5fd-d419-4831-bcf5-e6846857fb64",  # unique ID generated on each search.
"client_type": "UI",
"query_filter": "",
"latest": false,
"lookup": false,
"query_type": "chart",
"time_range": [
        1582023872,
        1582110272
        ],
"searchId": "23b4a5fd-d419-4831-bcf5-e6846857fb64",
"clientType": "UI",
"success": true
        }

Response Parameters¶

Response Parameters	Value Type	Description
search_id	String	A unique identifier generated for each search request.
client_type	String	Type of client that initiated the request.
query_filter	String	Specifies any filters applied to the query.
latest	Boolean	Returns True if the search fetches the latest logs; otherwise, it returns False.
lookup	Boolean	Returns True if the search includes a lookup operation; otherwise, it returns False.
query_type	String	Defines the type of query executed (Example: chart).
time_range	Array of integers	Contains two timestamps that define the start and end of the search time range.
success	Boolean	Returns True if the API call is successful; otherwise it returns False.

Getting Search Logs¶

Retrieve search result logs based on the search_id. The server sends the search result logs in chunks. You need to continue sending the request with the same parameters until you receive a response where final is equal to TRUE. It indicates that you have received all the search result logs.

POST

https://Logpoint-IP/getsearchlogs

Parameter	Value Type	Description
username	String	Logpoint username
secret_key	String	Access key to uniquely identify an authorized user. Go to Finding the Access Key for information on retrieving it.
requestData	JSON Object	A JSON object containing a unique search_id.

Parameters¶

Parameters are data sent along with the request to retrieve information. It should be included in the request body as x-www-form-urlencoded.

{
        "username" : "John",
        "secret_key" : "a1b2c3d4e5f6g7h8i9j0k1",
        "requestData": {
                "search_id": "23b4a5fd-d419-4831-bcf5-e6846857fb64",
                }

}

Request Example¶

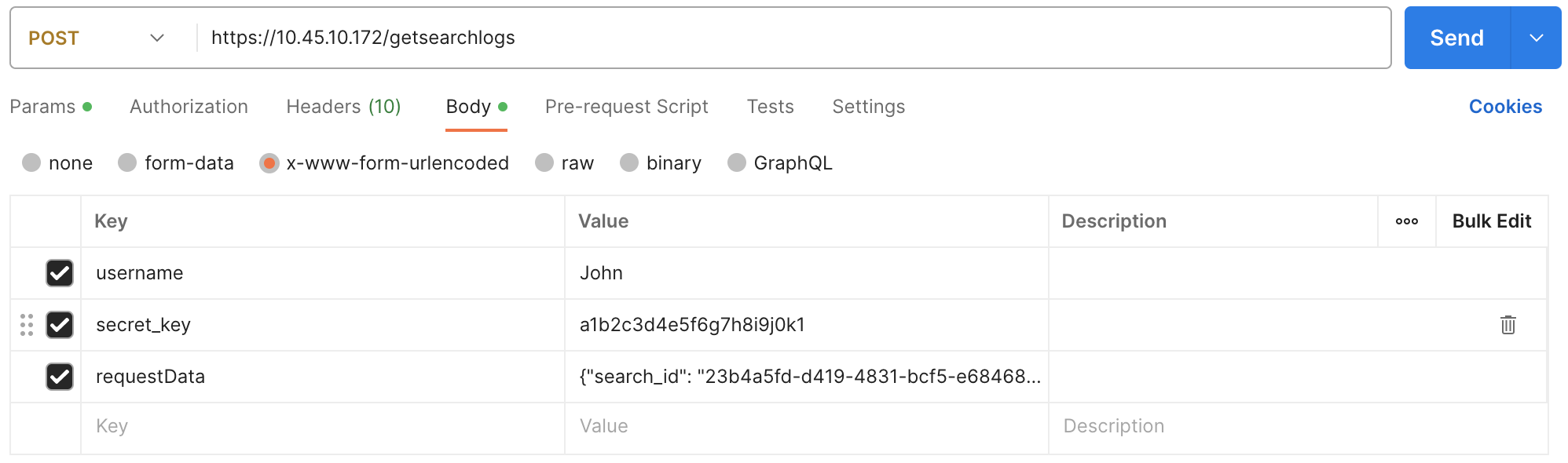

Search Log using Postman.¶

cURL Code¶

curl --location 'https://10.45.10.172/getsearchlogs' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--data-urlencode 'username=John' \
--data-urlencode 'secret_key=a1b2c3d4e5f6g7h8i9j0k1' \
--data-urlencode 'requestData={"search_id": "23b4a5fd-d419-4831-bcf5-e6846857fb64"}'

Success Response¶

{
"num_aggregated": 12345,
"columns": [
        "count()"
        ],
"query_type": "chart",
"rows": [
        {
                "device_ip": "::1",
                ....
                ....
        },
        {
                "device_ip": "127.0.0.1",
                ....
                ....
        }
        ],
"grouping": [
        "device_ip"
        ],
"version": 2,
"interesting_fields": [],
"time_range": [
        1582024214,
        1582110614
        ],
"orig_search_id": "23b4a5fd-d419-4831-bcf5-e6846857fb64",
"success": true,
"final": true,
"totalPages": 1,
"complete": true,
"showAdditionalPanels": true,
"status": {
        ....
        ....
        }
}

Response Parameters¶

Response Parameters	Value Type	Description
num_aggregated	Integer	The total number of logs aggregated in the result set.
columns	Array of strings	Lists the columns returned by the query, such as count().
query_type	String	Defines the type of query executed (Example: chart).
rows	Array of objects	Contains the actual search result logs. Each object represents a log entry with relevant fields (e.g., device_ip).
grouping	Array of strings	Defines the fields used to group the search results (e.g., device_ip).
version	Integer	Version of the search result format or API being used.
interesting_fields	Array of strings	Lists any fields deemed interesting in the result set.
time_range	Array of integers	Contains two timestamps that define the start and end of the search time range.
orig_search_id	String	The original search_id used to initiate the search.
final	Boolean	Returns True if all search result logs are retrieved; otherwise it returns False.
success	Boolean	Returns True if the API call is successful; otherwise it returns False.
totalPages	Integer	The total number of pages of results.
complete	Boolean	Returns True the search is successful; otherwise it returns False.
showAdditionalPanels	Boolean	Returns True additional visualizations should be displayed with the search result; otherwise it returns False.
status	object	Additional status information about the search, such as progress or execution details.
