Installation¶

Prerequisites¶

• Director Fabric v1.4.0 or later

• Director Console v1.6.0 or later

• LogPoint v6.12.2 or later

• Threat Intelligence v5.0.0 or later

Uploading the StixTaxii Application in Director Console¶

1. Click Assets from the left navigation bar.

2. Select the Assets Type you want to upload.

3. Click the upload area to browse, or drag and drop the StixTaxii_6.0.0.pak file.

4. Click Upload.

Once uploaded, the Assets page adds the pak file to the list of the available packages in the Fabric Server.

Uploading StixTaxii Pak File¶

Installing the StixTaxii Application in Director Console¶

1. Click Assets from the left navigation bar.

2. Select StixTaxii_6.0.0.pak from the list of available packages.

3. Click Install.

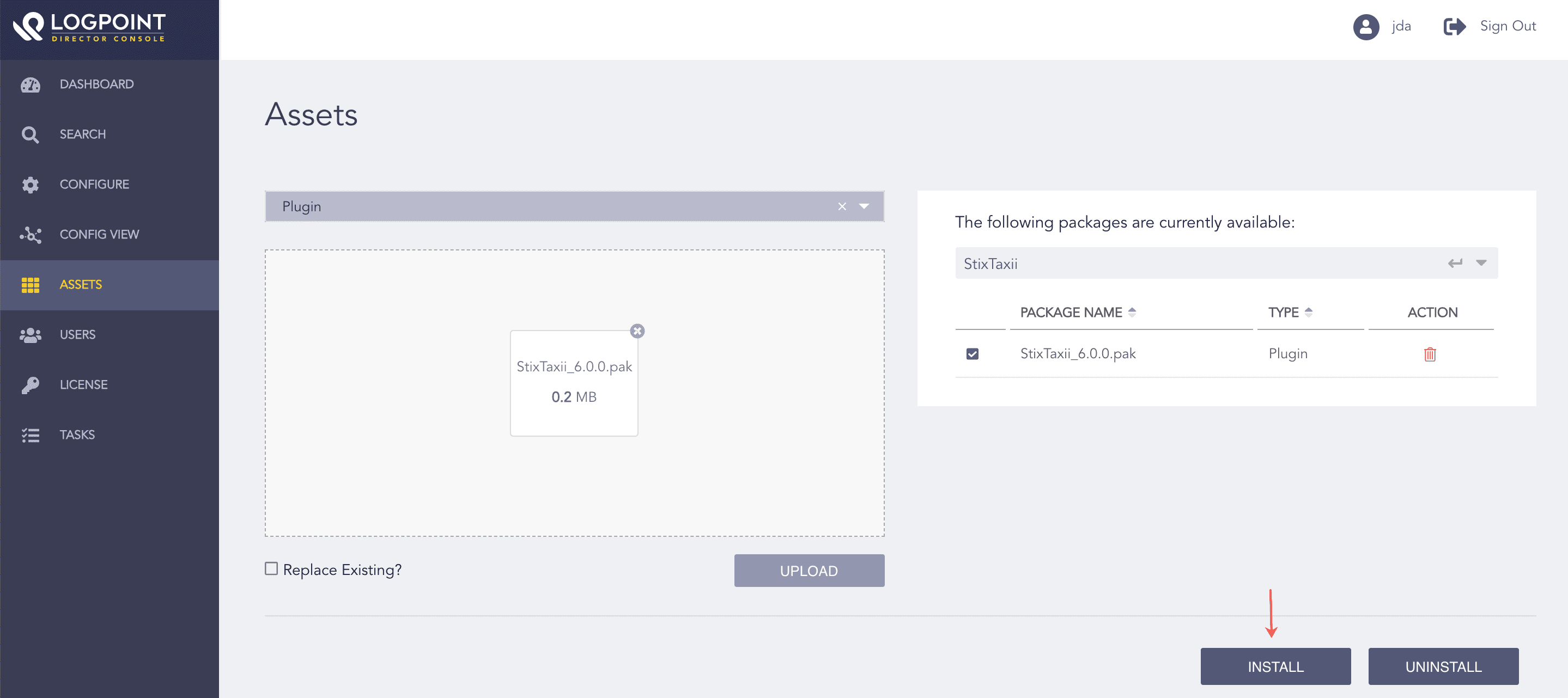

   Selecting the StixTaxii Package¶

4. Select LogPoint machines to install the StixTaxii application. You can select multiple machines of different pools.

5. Click Next.

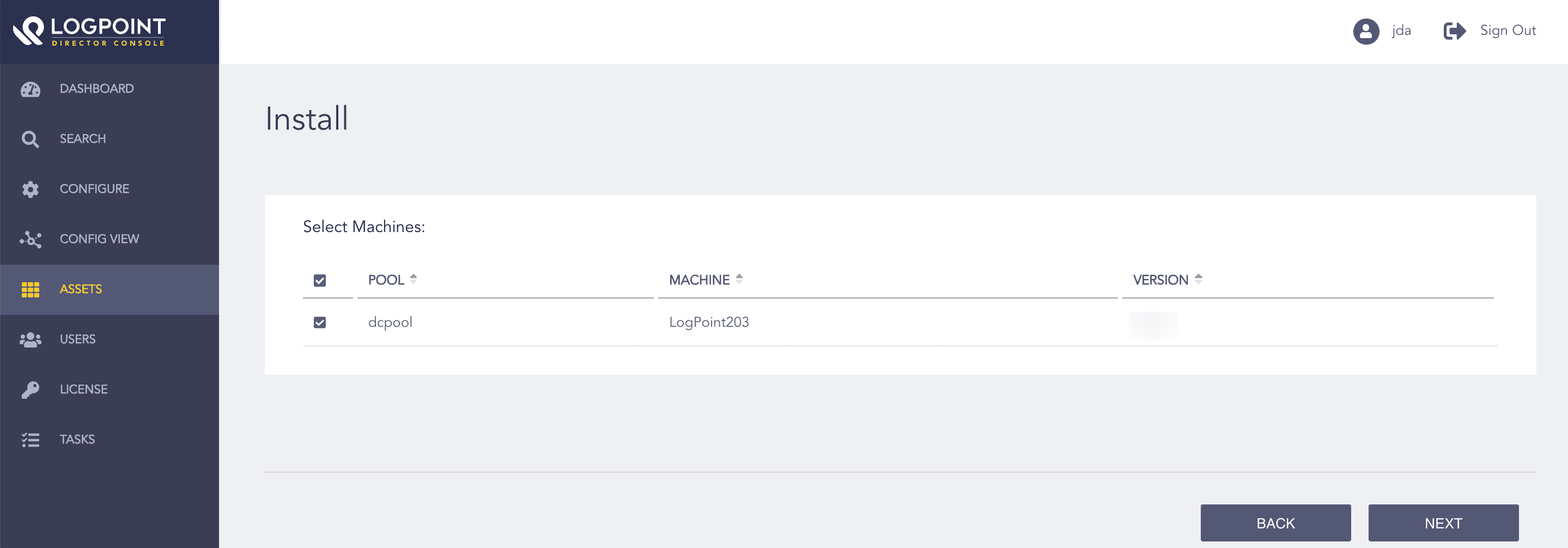

   Selecting LogPoint Machines¶

6. Review your changes. You can go Back to make any changes if necessary.

7. Click Install.

8. Click OK.

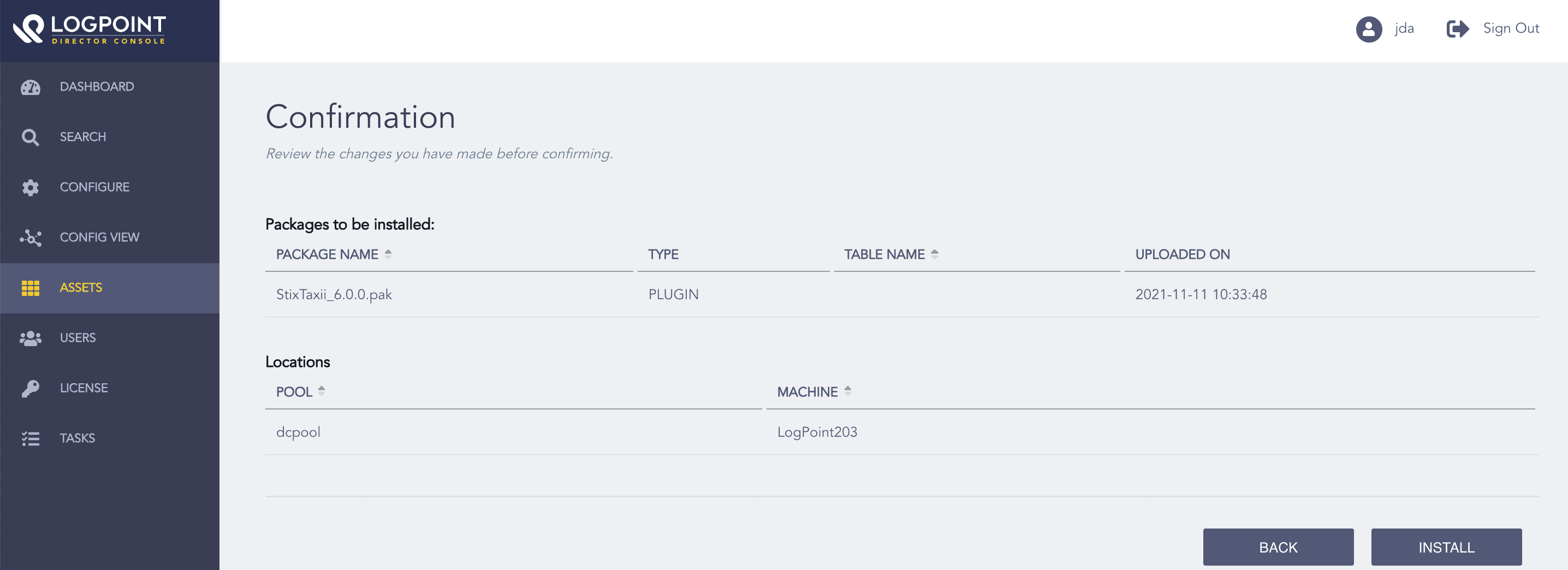

   Confirming the Changes¶
