Director Users and Workflow

Director Users

Fabric Server and API Server users:

User	Description
support	System root user with sudo access
partner	System root user with sudo access
cmdr-admin	System admin user

LPSM users:

User	Description
li-admin	System admin user
admin	UI admin user

For more information on the other types of LPSM UI users and their management, refer to the LPSM User Account Management section.

Director Console UI users:

User	Description
root	Default user
admin	UI admin user
user	Normal user

For more information on the other types of Director Console UI users and their management, refer to the Director Console User Account Management section.

Director Workflow

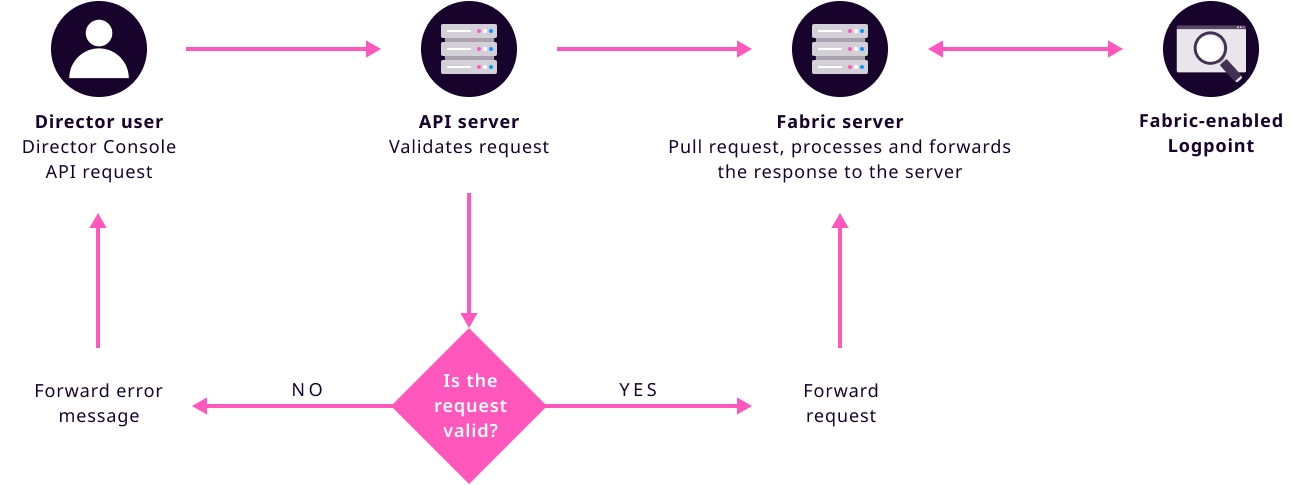

Handling API requests

Once you send an API request, the API Server validates it. If valid, the API Server forwards it to the Fabric Server. The Fabric-enabled Logpoint reads the request from the Fabric Server, makes the necessary changes, and forwards the response back to the Fabric Server.

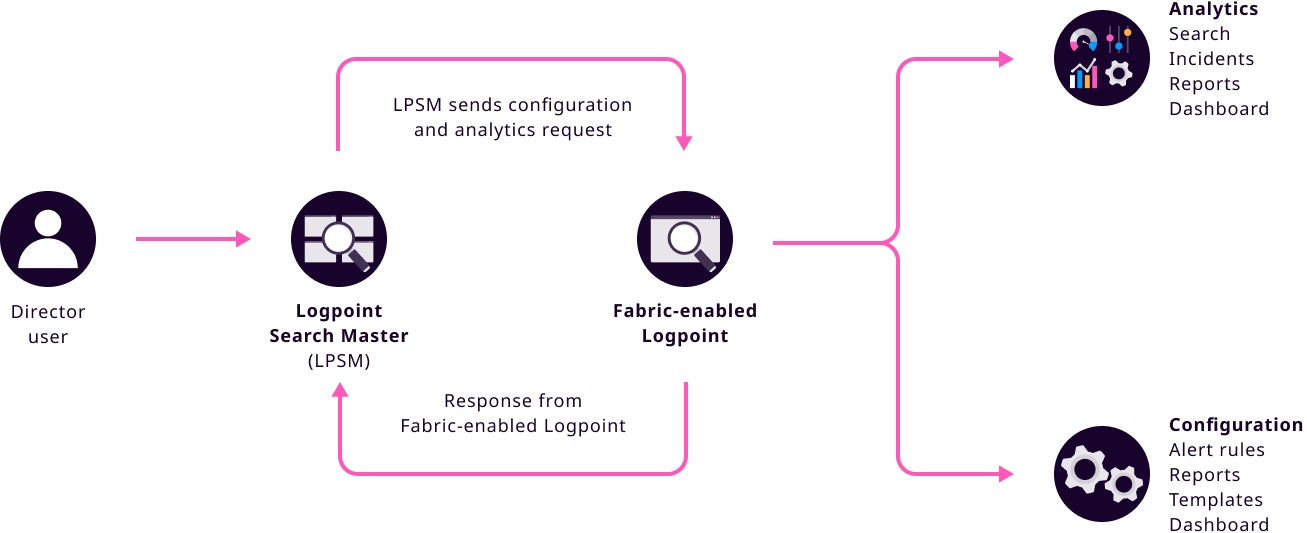

Handling LPSM requests

When you make any Logpoint request from LPSM, it forwards the request to the Logpoint through a private network. The Logpoint processes the request and sends the response back to LPSM.
