Devices¶

Adding a Device¶

1. Go to Configure >> Entities >> Devices.



   Creating a Device¶

   Note

   Click Download CSV File to download the configuration of all devices in CSV. You can also download the configurations of the devices configured to a Logpoint by selecting the Logpoint from Select Configuration Location and clicking Download CSV File.

2. Select the Logpoint instances where you want to configure the device.

3. Click Next.

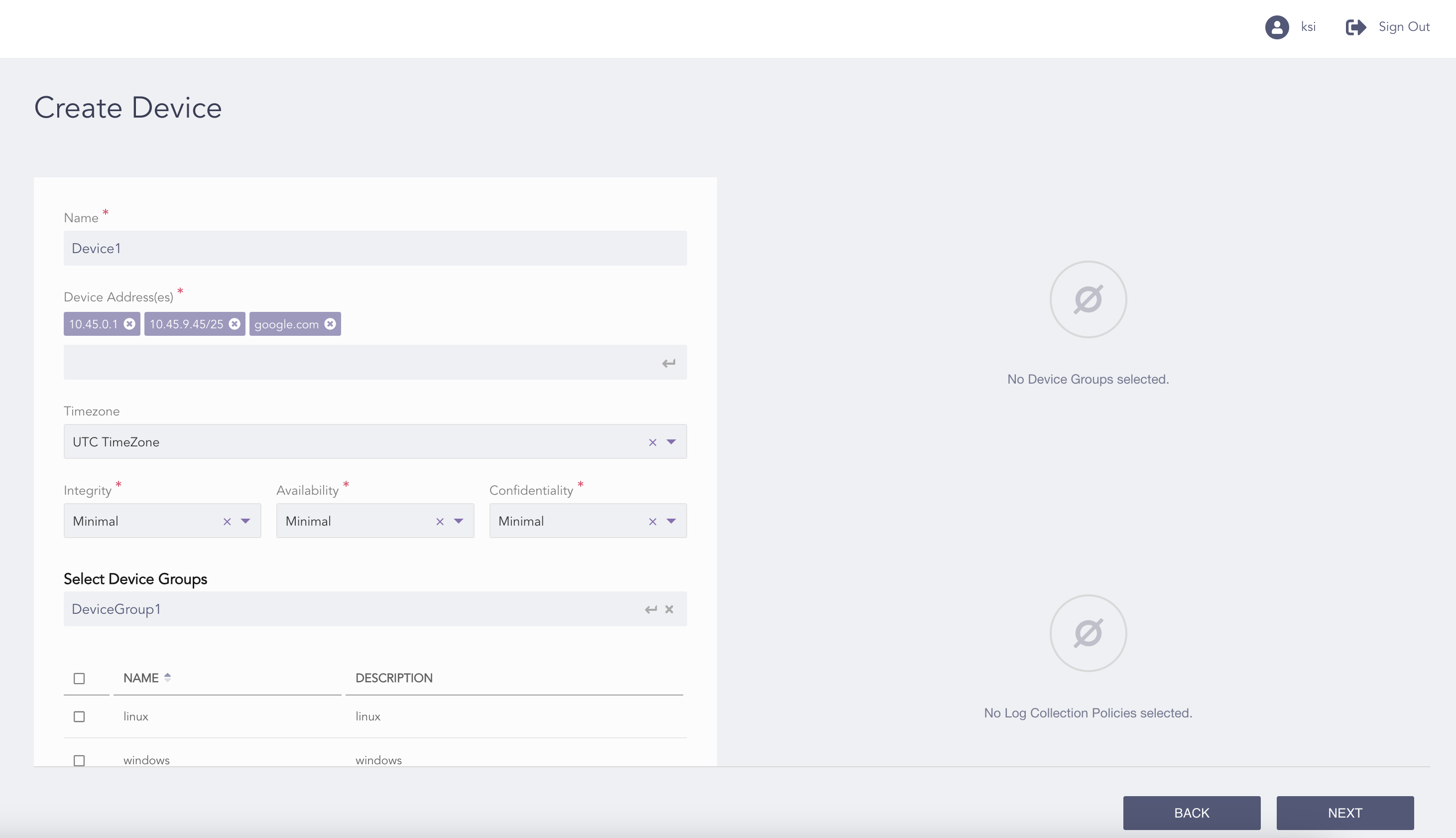

   Configuring the Device¶

4. Enter a Name.

5. In Device address(es), enter the IP addresses or hostnames of the device. However, Logpoint currently supports only those hostnames that can be resolved into a single IP address. Press Enter after every addition.

6. Select the Timezone of the device. The time zone of the device must be the same as that of the log source.

   Warning

   • Make sure that you enter the correct time zone.

   • If the time zones are different, the extracted log timestamp becomes incorrect, and the logs may not be searchable for the given time-period.

7. Select the risk values for Integrity, Availability, and Confidentiality.

8. Select the Device Groups to which you want to add the device and click Add to list.

   Note

   For multiple Logpoint instances, you can select the device groups common to the selected Logpoint instances only.

9. Select the Log Collection Policies to which you want to add the device and click Add to list.

   Note

   For multiple Logpoint instances, you can select the log collection policies used by the selected Logpoint instances only.

9. Select the Distributed Collectors to which you want to add the device and click Add to List.

10. Click Next.

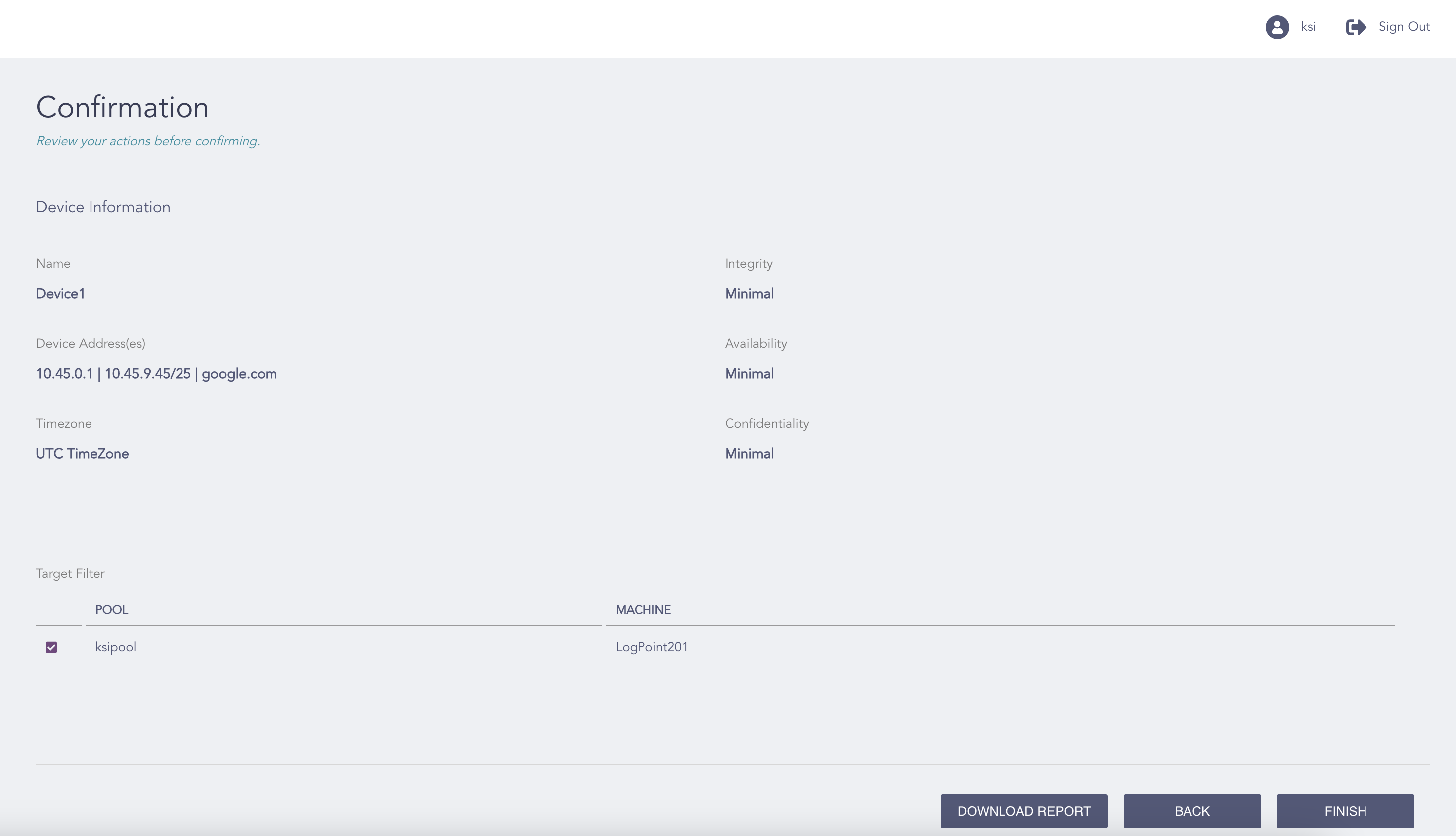

    Confirming the Changes¶

11. Review your changes. You can go Back to make any changes if necessary.

    Note

    Click Download Report to save the summary of the task in PDF.

12. Click Finish.

13. Click OK.

Importing Devices via a CSV File¶

Using Director Console, you can add multiple devices in a Fabric-enabled Logpoint by importing them via a CSV file.

1. Go to Configure >> Entities >> Devices.



   Importing Devices¶

2. Click Import.

3. Upload a CSV file.

   The first line of the CSV file must be a header row. You can use device_name, device_ips, device_groups, log_collection_policies, timezone, confidentiality, integrity, availability, distributed_collector, use_as_proxy, uses_proxy, charset, parser, processpolicy, proxy_ip, hostname, and machine_name as the header rows.

   The device_name, device_ips, and machine_name are mandatory fields. The machine_name is case-sensitive and must exist in Director Console.

   Note

   For more details, go to Importing Devices via a CSV File .

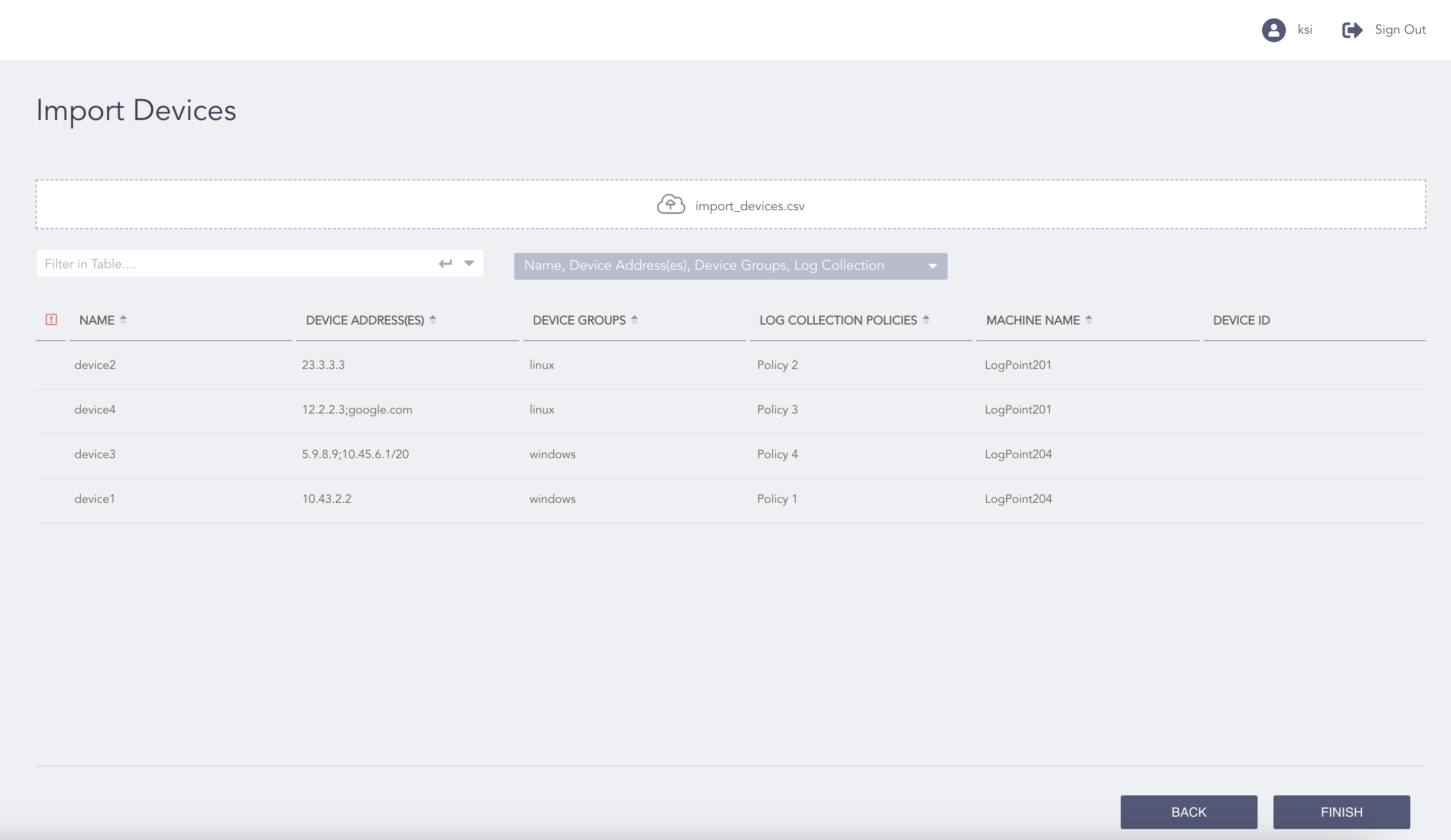

   Import Device Page After the CSV file is Imported¶

   Once the import process is complete, you can see all the devices from the CSV file.

   Note

   • You can toggle the error () symbol to view the rows with errors.

   • You can select the columns you want to view in the UI from the drop-down.

4. Click Finish.

5. Click OK.

Demonstration on Importing Devices¶

Consider a sample CSV file with the following data:

device_name,device_ips,device_groups,log_collection_policies,distributed_collector,confidentiality,integrity,availability,timezone,use_as_proxy,uses_proxy,charset,parser,processpolicy,proxy_ip,hostname,machine_name
device_2,215.197.233.90;3.110.20.166;87.214.228.170,linux,Policy 2,,Critical,Major,Minimal,Europe/Helsinki,TRUE,,ascii,SyslogParser,default,,,Logpoint201
device_3,79.203.195.25,windows,Policy 4,,Critical,Critical,Major,UTC,,,,,,,,Logpoint204
device_1,128.225.241.240;224.52.180.74;77.252.115.30,windows,Policy 1,,Major,Minimal,Critical,Europe/Helsinki,,,,,,,,Logpoint204
device_4,125.144.198.131,linux,Policy 3,,Minimal,Critical,Minor,Europe/Helsinki,,,,,,,,Logpoint201
device_5,125.212.114.40,Device_Group_II,Policy 2,,Minimal,Minimal,Minimal,UTC,,,,,,,,Logpoint201

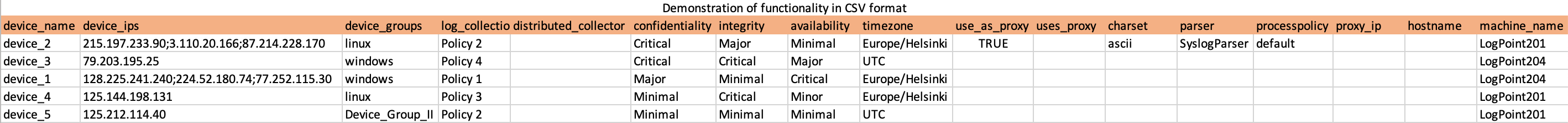

Sample CSV File¶

In this example, Policy 3 has no collectors or fetchers configured, and Policy 4 and Device_Group_II have not been created.

Importing the Devices¶

1. Go to Configure >> Entities >> Devices.

2. Click Import.

3. Upload the CSV file.



   Imported Devices¶

4. Click Finish.

5. Click OK.

6. Go to the Tasks page.

7. Click the Expand () symbol. You can see the Status of import device operation for each Logpoint.

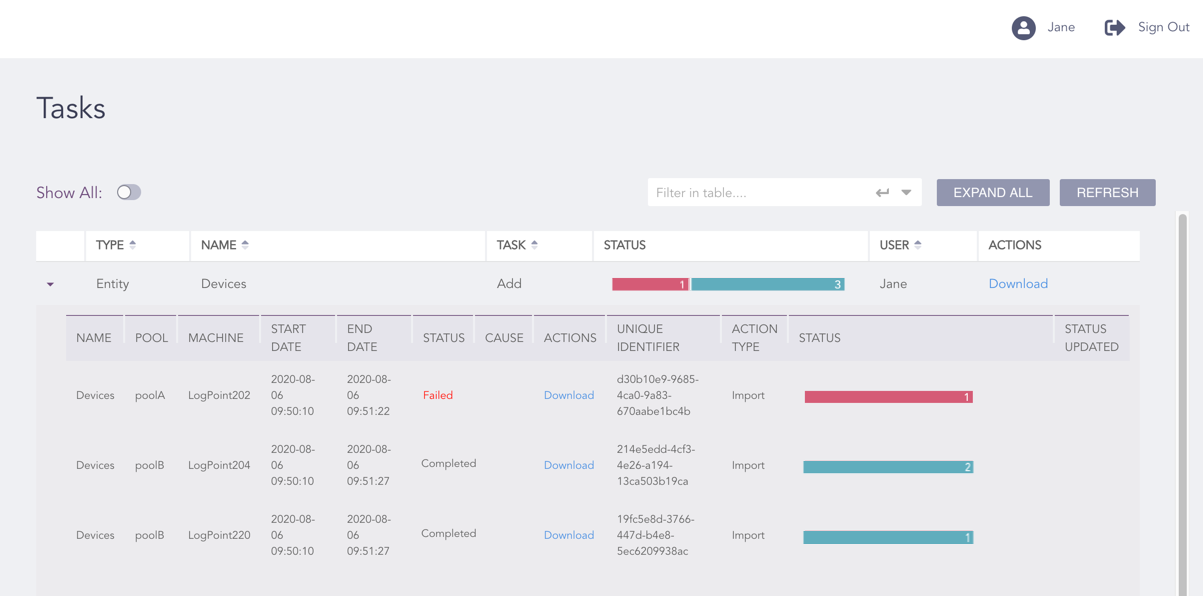

   Download CSV File from the Tasks Page¶

7. Click Download under ACTIONS of the failed import device task.

8. Open the CSV file in any editor of your choice.

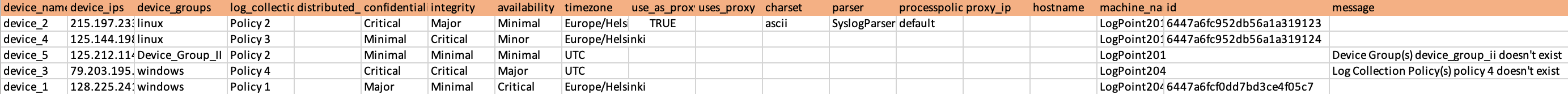

   Downloaded CSV File with New Message Header¶

9. Go to the message header row to find out why the operation failed.

10. Create the log collection policy Policy 4 and configure collectors and fetchers to it.

11. Create the device group Device_Group_II in Director Console.

12. Import the CSV file again.

13. Click Finish.

14. Click OK.

15. Go to the Tasks page and check the Status of the import device operation.
