Alert Rule API

The Alert Rules API allows you to create, update, list, read, delete, activate, and deactivate alert rules. You must create a token using the following scopes to use the alert rules API.

Scope name	Function
alertrules:write	Creating an Alert Rule Editing Alert Rules Activating Alert Rules Deactivating Alert Rules Deleting Alert Rules
alertrules:read	Listing Alert Rules Viewing Alert Rules

Creating an Alert Rule using API

To create alert rules, use AlertRules/create_api.

Endpoint URL

https://Logpoint-IP/AlertRules/create_api

Method

POST

Request Headers

• Content-Type: application/json

• Authorization: Bearer <TOKEN>

Parameters

Parameters are data sent with the API request. Include them in the request body as raw JSON.

Field	Type	Description
search_params	object	Defines the search query, time range, and repos used to retrieve logs to create an alert rule. Mandatory Field.
incident_condition	object	Rules for triggering an alert. Mandatory Field.
taxanomy	object	Additional context for the alert rule, including MITRE ATT&CK tags, log sources, and metadata for categorization. Mandatory Field.
incident_ownership	object	Defines the user responsible for the incident. Mandatory Field.
incident_display_data	object	Customizes the incidents obtained from the alert rule, including custom Jinja template, or a simple view. Mandatory Field.
foureyes	object	Whether to include raw log data in the alert rule for review. Optional Field.
name	string	Name of the alert rule. Must be at least 5 characters long. Mandatory Field.
description	string	Information about the alert rule. Optional Field.

Search Parameters

Field	Type	Description
query	string	Query used to search logs. Mandatory Field.
timerange_day, timerange_hour, timerange_minute	integer	Timeframe within which the search is performed. The time range value must be between 1 minute and 30 days. Add at least one field.
repos	string	List of addresses (from the Repos API) to retrieve logs to perform search. Mandatory Field.
limit	integer	Maximum number of logs to retrieve using the query. Default is 100. Optional.
flush_on_trigger	boolean	Ensure the next alert is triggered only based on a new set of events. Default is false. Optional.
search_interval_minute	integer	Search interval in minutes. Must be a factor of the time range value. Default is 10. Optional.
delay_interval_minute	integer	Delay before processing logs to ensure all relevant data is collected (used with log_ts based searches). Default is 0. Optional.
throttling_enabled	boolean	Avoid creating multiple alerts for the same set of values for a specified time. Default is false. Optional.
throttling_field	string	Field name used to apply throttling. Optional.
throttling_time_range	integer	Time range (in minutes) to avoid repeated alerts for a specific value set in throttling_field. Default is 0. Optional.

Incident Condition Parameters

Field	Type	Description
condition_option	string	Must be one of: greaterthan, equals, lessthan, greaterthanorequals, moreequal, lessequal, notequal. Mandatory.
condition_value	number	Threshold value for the condition. Mandatory.
risk	string	Must be one of: low, medium, high, critical. Mandatory.
aggregate	string	Must be one of: max, min, avg. Mandatory.

Taxonomy Parameters

Field	Type	Description
attack_tag_hashes	array of strings	List of MITRE ATT&CK tag identifiers (hashes) linked to this alert rule. Optional.
logsources	array of strings	List of log sources related to the rule. Optional.
metadata	object	Additional metadata as key-value pairs for categorization. Provide objects with field and value. Optional.

Incident Ownership Parameters

Field	Type	Description
assignee	string	Logpoint Username to whom the incidents are assigned. Mandatory.
visible_to_usergroups	array of strings	Names of Logpoint User Group. They must be added to the Incident User Group. Optional.

Incident Display Data Parameters

Field	Type	Description
apply_jinja_template	boolean	Use a custom Jinja template to format the incidents. Default is false. Optional.
simple_view	boolean	Use a simplified layout when displaying this alert. Default is false. Optional.
jinja_template	string	Jinja template string for customizing incident display. Optional.

Four Eyes Parameter

Field	Type	Description
original_data	boolean	If true, includes raw logs in the alert rule for review. Default is false. Optional.

Request Example:

Create AlertRule - request example.json

{
  "search_params": {
    "query": "string",
    "timerange_day": 1,
    "timerange_hour": 0,
    "timerange_minute": 0,
    "repos": [
      "127.0.0.1:5504/_logpoint"
    ],
    "limit": 100,
    "flush_on_trigger": false,
    "search_interval_minute": 10,
    "delay_interval_minute": 0,
    "throttling_enabled": false,
    "throttling_field": "",
    "throttling_time_range": 0
  },
  "incident_condition": {
    "condition_option": "greaterthan",
    "condition_value": 0,
    "risk": "low",
    "aggregate": "max"
  },
  "taxonomy": {
    "attack_tag_hashes": [],
    "logsources": [],
    "metadata": [
      {
        "field": "string",
        "value": "string"
      }
    ]
  },
  "incident_ownership": {
    "assignee": "string",
    "visible_to_usergroups": []
  },
  "incident_display_data": {
    "apply_jinja_template": false,
    "simple_view": false,
    "jinja_template": ""
  },
  "foureyes": {
    "original_data": false
  },
  "name": "Alertrule_test",
  "description": ""
}

Success and validation error responses:

Success Response

{
  "name": "string",
  "id": "string",
  "message": "string"
}

Validation Error Response

{
  "success": false,
  "validationErrors": {
    "additionalProp1": "string",
    "additionalProp2": "string",
    "additionalProp3": "string"
  },
  "message": "string"
}

Editing Alert Rules using API

To edit alert rules, use AlertRules/update_api.

Endpoint URL

https://Logpoint-IP/AlertRules/update_api

Method

POST

Request Headers

• Content-Type: application/json

• Authorization: Bearer <TOKEN>

You must include the same parameters as Creating an Alert Rule, and add the alert rule id to update the alert rule information.

Field	Type	Description
id	string	Id of the created Alert Rule

Request example:

Update AlertRule - request example.json

{
  "search_params": {
    "query": "string",
    "timerange_day": 0,
    "timerange_hour": 0,
    "timerange_minute": 0,
    "repos": [
      "127.0.0.1:5504/_logpoint"
    ],
    "limit": 100,
    "flush_on_trigger": false,
    "search_interval_minute": 10,
    "delay_interval_minute": 0,
    "throttling_enabled": false,
    "throttling_field": "",
    "throttling_time_range": 0
  },
  "incident_condition": {
    "condition_option": "greaterthan",
    "condition_value": 0,
    "risk": "low",
    "aggregate": "max"
  },
  "taxonomy": {
    "attack_tag_hashes": [],
    "logsources": [],
    "metadata": [
      {
        "field": "string",
        "value": "string"
      }
    ]
  },
  "incident_ownership": {
    "assignee": "string",
    "visible_to_usergroups": []
  },
  "incident_display_data": {
    "apply_jinja_template": false,
    "simple_view": false,
    "jinja_template": ""
  },
  "foureyes": {
    "original_data": false
  },
  "name": "string",
  "description": "",
  "id": "string"
}

Success and validation error responses are the same formats as Creating an Alert Rule (HTTP 200 for success, 422 for validation error).

Activating Alert Rules using API

To activate alert rules, use AlertRules/activate_api.

Endpoint URL

https://Logpoint-IP/AlertRules/activate_api

Method

POST

Request Headers

• Content-Type: application/json

• Authorization: Bearer <TOKEN>

Parameters

Include parameters in the request body as raw JSON.

Field	Type	Description
ids	array of strings	Ids of the created Alert Rules. Get the list of ids from List API.

Request example:

Activate AlertRules - request example.json

{
  "ids": [
    "string"
  ]
}

Success response:

Activate Success Response

{
  "success": true,
  "ids": [
    "string"
  ],
  "message": "string"
}

Validation error response:

Activate Validation Error Response

{
  "success": false,
  "validationErrors": {
    "additionalProp1": {}
  },
  "message": "string"
}

Deactivating Alert Rules using API

To deactivate alert rules, use AlertRules/deactivate_api.

Endpoint URL

https://Logpoint-IP/AlertRules/deactivate_api

Method

POST

Request Headers

• Content-Type: application/json

• Authorization: Bearer <TOKEN>

Parameters

Field	Type	Description
ids	array of strings	Ids of the created Alert Rules. Get the list of ids from List API.

Request Example:

Deactivate AlertRules - request example.json

{
  "ids": [
    "string"
  ]
}

Success Response:

Deactivate Success Response

{
  "success": true,
  "ids": [
    "string"
  ],
  "message": "string"
}

Validation error response:

Deactivate Validation Error Response

{
  "success": false,
  "validationErrors": {
    "additionalProp1": {}
  },
  "message": "string"
}

Deleting Alert Rules using API

To delete alert rules, use AlertRules/delete_api.

Endpoint URL

https://Logpoint-IP/AlertRules/delete_api

Method

POST

Request Headers

• Content-Type: application/json

• Authorization: Bearer <TOKEN>

Parameters

Field	Type	Description
ids	array of strings	Ids of the created Alert Rules. Get the list of ids from List API.

Request Example:

Delete AlertRules - request example.json

{
  "ids": [
    "string"
  ]
}

Success Response:

Delete Success Response

{
  "success": true,
  "ids": [
    "string"
  ],
  "message": "string"
}

Validation error response:

Delete Validation Error Response

{
  "success": false,
  "validationErrors": {
    "additionalProp1": {}
  },
  "message": "string"
}

Listing Alert Rules using API

To list alert rules, use AlertRules/lists_api.

Endpoint URL

https://Logpoint-IP/AlertRules/lists_api

Method

GET

Request Header

• Authorization: Bearer <TOKEN>

Parameters

Parameters are sent as query parameters (Key and Value).

Field	Type	Description
limit	integer	Number of alert rules to display. Default is 25. Optional.
page	integer	The alert rule page to display. Default is 1. Optional.
return_all_data	boolean	Whether to display all alert rules. Default is false. Optional.

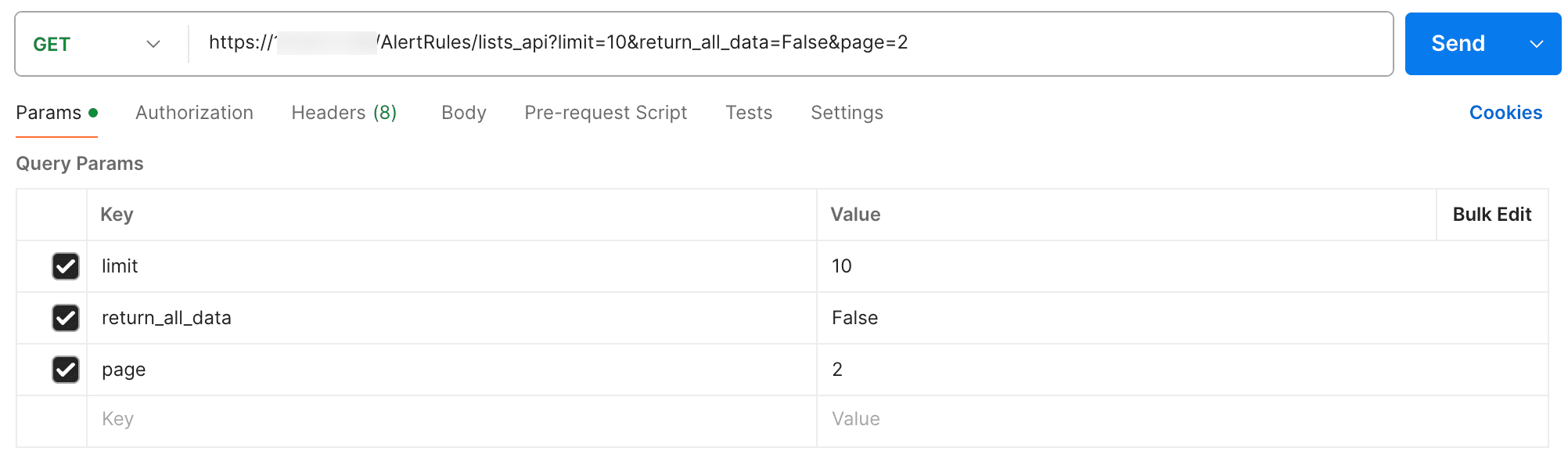

Request example

Success response:

List Success Response

{
  "rows": [
    {
      "name": "Alertrule name",
      "active": true,
      "description": "string",
      "id": "681b450d7df224cfd8c3d740",
      "user": "admin",
      "cloud_rule_id": "2be16878-9f95-43vd-713t-46878244983e"
    }
  ],
  "total": 10
}

Viewing an Alert Rule using API

To view an alert rule, use AlertRules/read_api.

Endpoint URL

https://Logpoint-IP/AlertRules/read_api

Method

GET

Request Header

• Authorization: Bearer <TOKEN>

Parameters

Parameters are sent as query parameters (Key and Value).

Field	Type	Description
id	string	Id of the created Alert Rule. Get the list of ids from List API. Mandatory.

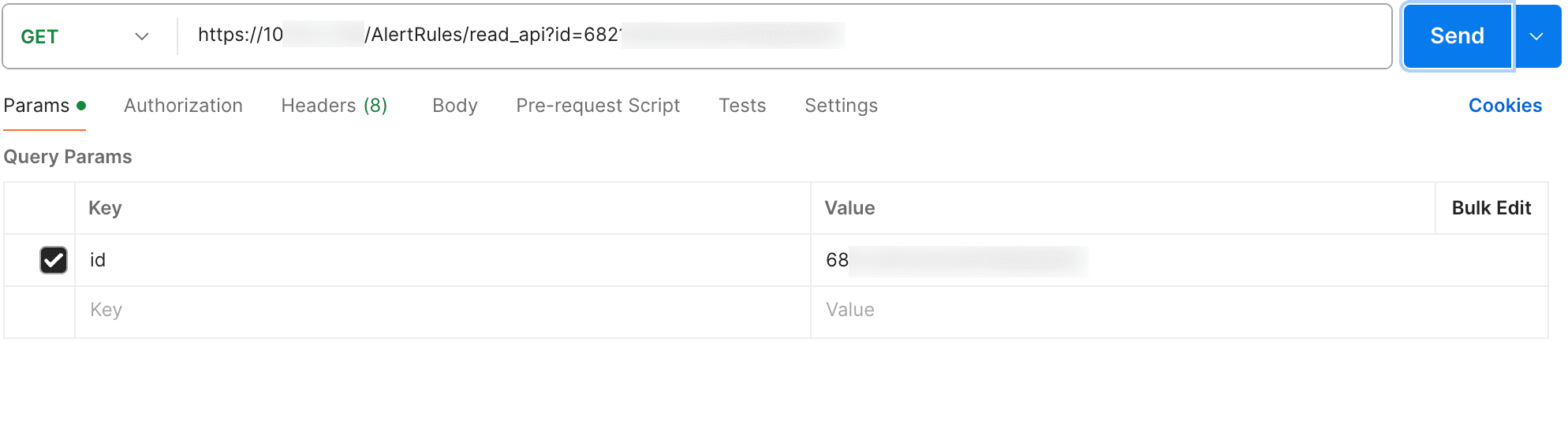

Request example:

Success response:

Read Success Response

{
  "data": {
    "search_params": {
      "query": "string",
      "timerange_day": 0,
      "timerange_hour": 0,
      "timerange_minute": 0,
      "repos": [
        "127.0.0.1:5504/_logpoint"
      ],
      "limit": 100,
      "flush_on_trigger": false,
      "search_interval_minute": 10,
      "delay_interval_minute": 0,
      "throttling_enabled": false,
      "throttling_field": "",
      "throttling_time_range": 0
    },
    "incident_condition": {
      "condition_option": "greaterthan",
      "condition_value": 0,
      "risk": "low",
      "aggregate": "max"
    },
    "taxonomy": {
      "attack_tag_hashes": [],
      "logsources": [],
      "metadata": [
        {
          "field": "string",
          "value": "string"
        }
      ]
    },
    "incident_ownership": {
      "assignee": "string",
      "visible_to_usergroups": []
    },
    "incident_display_data": {
      "apply_jinja_template": false,
      "simple_view": false,
      "jinja_template": ""
    },
    "foureyes": {
      "original_data": false
    },
    "name": "string",
    "description": "",
    "active": true,
    "alert_id": "string",
    "alertrule_unique_id": "string",
    "notifications": [],
    "rbac_config": [],
    "user": "string",
    "vid": "string",
    "cloud_rule_id": "2be17875-5c97-43fd-813c-46638244983e"
  }
}
